100kW Cutter Power Dredger Equipped with Rexroth Vickers Parker Hydraulic System

Basic Information

Brand Name:	Jin Meng
Certification:	ISO
Model Number:	JMD450

Minimum Order Quantity:	1 Set
Price:	$300000-$500000
Packaging Details:	Bulk
Delivery Time:	30days
Payment Terms:	TT
Supply Ability:	20sets/year

Get Best Price Chat Now

Type:	Hydraulic Cutter Suction Dredger	Fuel Consuption:	34L-500L
Power Type:	Diesel	Engine Brand:	Cummins /Weichai
Customized Service:	Provided	Cutter Power:	100kW
Dredging Depth:	Up To 12m	Cyclone Type:	Cast Iron Cyclone

100kW Cutter Power Dredger Equipped with Rexroth Vickers Parker Hydraulic System

Product Specifications

Attribute	Value
Type	Hydraulic Cutter Suction Dredger
Fuel Consumption	34L-500L
Power Type	Diesel
Engine Brand	Cummins /Weichai
Customized Service	Provided
Cutter Power	100kW
Dredging Depth	Up To 12m
Cyclone Type	Cast Iron Cyclone

Product Description

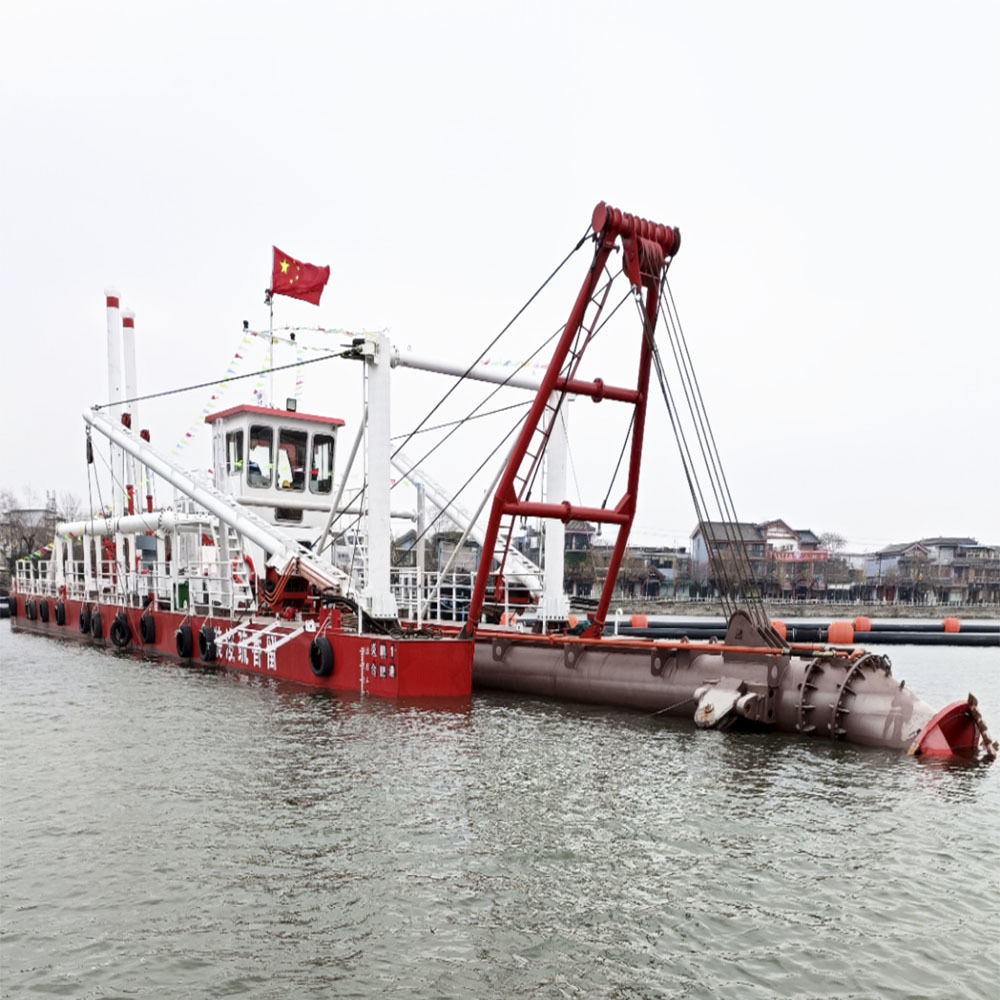

The Cutter Suction Dredger is a powerful hydraulic dredging machine designed for various applications. Powered by a reliable diesel engine, this dredger features a high-performance 100kW cutter power system for efficient cutting and dredging operations.

The hydraulic system incorporates premium components from Rexroth, Vickers, and Parker, ensuring precise control and enhanced productivity. The dredger is available in self-propelled or non-self-propelled configurations with a modular hull design for easy transportation and assembly.

Key Features

Operation System: SIEMENS System
Engine Brand: Cummins /Weichai
Fuel Consumption: 34L-500L
Type: Hydraulic Cutter Suction Dredger
Power Type: Diesel
Modular design for easy transportation
Advanced hydraulic control system

Technical Parameters

Parameter	Value
Model	JMD450 Cutter Suction Dredger
Dredging Pump Discharge Pipe	450mm
Head	55m
Max. Working Capacity	400m³/h
Discharge Distance	1500m
Dredging Depth	12m
Diesel Engine	746KW Cummins
Emergency Generator	16KW Weichai
Total Power	762KW
Oil Consumption	115L/H
Hull Dimensions (LOA×W×D)	37m × 6.9m × 1.8m

Applications

The JMD450 Cutter Suction Dredger is ideal for various dredging operations including:

River and channel dredging
Sand and silt removal
Land reclamation projects
Port and harbor maintenance
Coastal protection initiatives
Environmental dredging

Suitable for working in sea, port, lake, and river environments with various soil conditions including hard soil, sand, sludge, clay, and mud.

Customization Options

Brand: Jin Meng
Model: JMD450
Origin: China
Certification: ISO
Minimum Order: 1 Set
Price Range: $300,000-$500,000
Delivery Time: 30 days
Annual Capacity: 20 sets/year

Overseas Services

We provide comprehensive technical support including:
