Cutter Blades Suction Dredger With Diesel Engine Or Electric Motor Pump Power

Cutter Suction Dredger Product Description:

A Cutter Suction Dredger, also known as a cutter head suction dredger, is a versatile vessel designed for dredging operations in various water bodies. This powerful dredging equipment is equipped with advanced technology to efficiently remove sediment and debris from the seabed.

The Cutter Suction Dredger is equipped with state-of-the-art pump technology. This innovative pump system ensures high efficiency and reliability during dredging operations, allowing for seamless sediment removal.

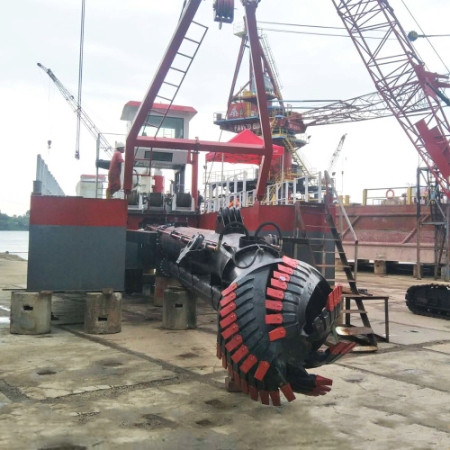

One of the key features of the Cutter Suction Dredger is its cutter blade quantity, which typically ranges from 5 to 6 pieces. These sharp and durable cutter blades effectively cut through compacted soil, rocks, and other materials on the seabed, facilitating the dredging process.

The cutter suction dredger we produce is self-propelled or non self-propelled,portable cutter suction dredger. The hull uses dismantle and box-like structure, Its dismantle type can be assembly at working place easily and be transported by road, railway and container accordingly, convenient in installation and working place moving from one to another. The power system can be designed to electric system or diesel engine driving system according to customers’ requirements.

River cutter suction dredger is designed and constructed as a dismantle type non-self-propelled cutter suction dredger, suitable for dredging operation of soil type II~IV, including fine sand, clay, silt, coarse sand, etc., in inland water and coastal area.

In conclusion, the Cutter Suction Dredger is a reliable and efficient dredging vessel equipped with advanced technology and features to handle various dredging projects. With multiple cutter blades, adjustable width, stable hull depth, and HDPE sand pipe material, this cutter head suction dredger is well-suited for tackling sediment removal tasks in different water bodies.

Cutter Suction Dredger Technical Parameters:

Cutter Suction Dredger Applications:

Jin Meng Cutter Suction Dredger JMD450, originating from China, is a versatile and powerful equipment designed for a wide range of dredging applications. With a width ranging from 2.0 to 8.8 meters, the JMD450 is suitable for various water bodies, including rivers, lakes, and ports.

The Cutter Suction Dredger is equipped with optional features such as a water flow meter and sounder depth, enhancing its efficiency and precision during dredging operations. The cutter head suction dredger is capable of accommodating cutter head diameters ranging from 1000 to 3000mm, allowing for customized dredging based on specific project requirements.

The hull of river cutter suction dredger is composed by five pontoons, including one main pontoon and four side pontoons. The pontoons are full steel welding and are combined together by specially designed connecting pieces for convenient dismantle and assembly. All main parts of river cutter suction dredger can be dismantled easily for transportation by sea, railway or road.

The river cutter suction dredger is equipped with one diesel engine driving dredge pump.

One harbor generator is equipped.

Whether used in ports for deepening channels, in rivers for flood control, or in mining operations for extracting minerals, the Jin Meng Cutter Suction Dredger JMD450 proves to be a reliable and effective cutter dredger in diverse environments. Its robust construction, advanced features, and powerful performance make it a valuable asset for dredging contractors and operators worldwide.

Cutter Suction Dredger Customization:

Enhance your dredging operations with our customizable Cutter Suction Dredger from Jin Meng. The model number JMD450, originating from China, offers a width ranging from 2.0 to 8.8 meters. Powered by a diesel engine or electric motor, this dredger features a hull depth of 1.6 meters and comes equipped with 5-6 cutter blade pieces. The sand pipe material is constructed from durable HDPE, ensuring efficiency and durability for all your cutter dredger needs.

Cutter suction dredger can be customized according to customers’ requirements:

1. Anchor booms installation.

2. Spud carriage installation.

3. 5 anchors are equipped on cutter suction dredger to replace spuds for better balance.

4. Hydraulic driving for spud flat down(to pass and transport on water safely).

5. Make the cutter suction dredger with extra dredging pump underwater to increase dredging depth for 20-30m underwater and guarantee slurry concentrationtp reach 30%.

6. Make the cutter suction dredger with booster station to further discharge distance.

Cutter Suction Dredger Overseas Services:

Our Cutter Suction Dredger product comes with comprehensive technical support and services to ensure optimal performance and reliability. Our team of experts is dedicated to assisting you with any issues or questions you may have regarding the operation, maintenance, or troubleshooting of the dredger.

We offer a range of services including training programs, maintenance plans, spare parts supply, and on-site support to help you maximize the efficiency and lifespan of your equipment. Our goal is to provide you with the necessary resources and assistance to keep your Cutter Suction Dredger running smoothly and effectively.

Packing and Shipping:

Product Packaging for the Cutter Suction Dredger:

The Cutter Suction Dredger will be securely packaged in a wooden crate to ensure safe transportation and delivery.

Shipping Information:

Shipping Method: Sea freight

Estimated Delivery Time: 4-6 weeks

Shipping Cost: To be calculated based on destination

FAQ:

Q: What is the brand name of this Cutter Suction Dredger?

A: The brand name of this Cutter Suction Dredger is Jin Meng.

Q: What is the model number of this Cutter Suction Dredger?

A: The model number of this Cutter Suction Dredger is JMD450.

Q: Where is this Cutter Suction Dredger manufactured?

A: This Cutter Suction Dredger is manufactured in China.

Q: What is the capacity of the Cutter Suction Dredger?

 A: The capacity of the Cutter Suction Dredger model JMD450 is 500m3/h.

Q: Is the Cutter Suction Dredger easy to operate?

A: Yes, the Cutter Suction Dredger model JMD450 is designed to be easy to operate and user-friendly.
