| Place of Origin: | China |
|---|---|
| Brand Name: | JIN MENG |
| Certification: | ISO9001 |
| Model Number: | JMD650 |
| Minimum Order Quantity: | 1 set |
| Price: | $800000-$1400000 |
| Packaging Details: | Bulk |
| Delivery Time: | 120days |
| Payment Terms: | ,T/T |
| Supply Ability: | 10sets/year |
| Name: | Sea Sand Dredger | Type: | Sand Dredger |
|---|---|---|---|
| Structure: | Dismountable | Function: | Sea Sand Reclamation |
| Diesel Engine: | MITSUBISHI | Total Power: | 2437kw |
| Lead Time: | 120days | Color: | Customized |
| Highlight: | 26inch Sea Sand Dredger,Reclamation sea sand dredger,6000m3 26 inch cutter suction dredger |
||
| Name | Sea sand dredger |
| Type | Sand dredger |
| Structure | Dismountable |
| Function | Sea sand reclamation |
| Diesel engine | MITSUBISHI |
| Total power | 2437kw |
| Lead time | 120 days |
| Color | Customized |
Weifang Jin Meng Dredger Co., Ltd. is a professional sea sand dredger manufacturer located in Qingzhou, Weifang City, Shandong Province. With specialization in sea sand dredgers since 2000, we offer competitive pricing and serve markets across Africa, the Middle East, Southeast Asia, South America, and the United States.

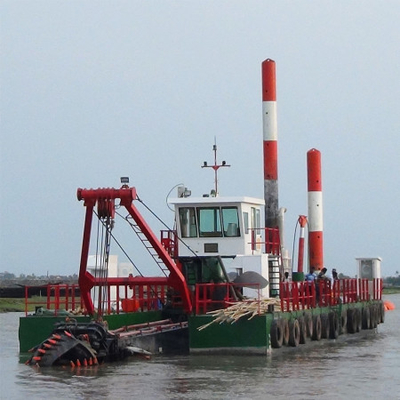

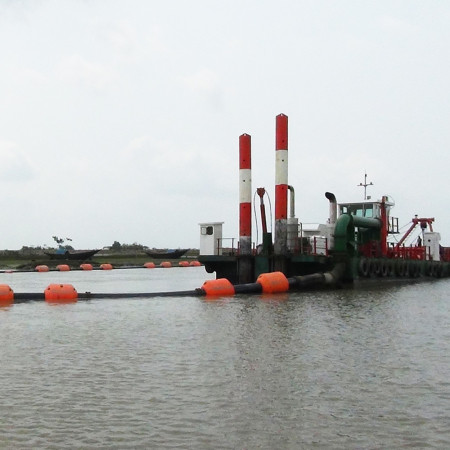

The 26inch Sea Sand Dredger is a hydraulic-controlled, assembled river sand dredger designed for sea sand reclamation with a water flow capacity of 6000m³. Its dismantle-type box-like structure allows for easy assembly at the worksite and convenient transportation by road, rail, or container.
Key features include:
| WARMAN Dredging Pump | |
| Discharge pipe diameter | 650mm |
| Head | 65m |
| Max. working capacity | 1100m³/h |
| Discharge distance | 4000m |
| Dredging depth | 18m |
| Power System | |
| Diesel Engine | 1885KW Mitsubishi |
| Hydraulic Auxiliary engine | 522KW Cummins |
| Emergency Generator | 30KW WEICHAI |
| Total power | 2437KW |
| Oil Consumption | 365L/H |
| Dimensions & Components | |
| Hull dimensions (LOA×W×D) | 50m × 8.8m × 2.5m |
| Hydraulic pump | VICKERS America (Joint-venture) |
| Hydraulic Motor | Italy SAI technology (Joint-venture) |
| Valves | REXROTH Germany (Joint-venture) |
| Operating system | SIEMENS PLC (Imported from Germany) |
| Ladder winch tension | 200KN |
| Swing winch tension | 160KN |
| Cutter Head (Crown-like) | Φ2200mm, 400KW power |
We provide comprehensive support including:
