6000m3 26inch Heavy Type Diesel Engine Power Sand Suction Dredger With Cutter Head

Basic Information

Place of Origin:	China
Brand Name:	JIN MENG
Certification:	ISO9001
Model Number:	JMD650

Minimum Order Quantity:	1set
Price:	$800000-$1400000
Packaging Details:	Bulk
Delivery Time:	120days
Payment Terms:	,T/T
Supply Ability:	10sets/year

Get Best Price Chat Now

Name:	Heavy Type Diesel Power Sand Suction Dredger	Type:	Sand Suction Dredger
Sand Pump:	530WN	PLC Brand:	SIEMENS
Side Plate Thickness:	6-25mm	Spud Length:	Up To 25m
Draft:	1.2m	Output Distance:	3000m
Sand Pump Brand:	Shijiazhuang Industrial Factory	Equipment Weight:	290 Tons
Highlight:	6000m3 sand suction dredger , Heavy Type sand suction dredger , 6000m3 26 inch cutter suction dredger

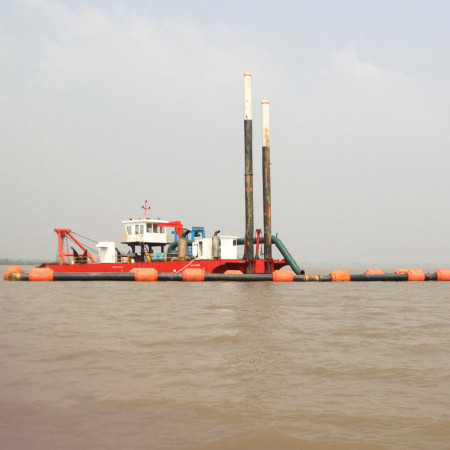

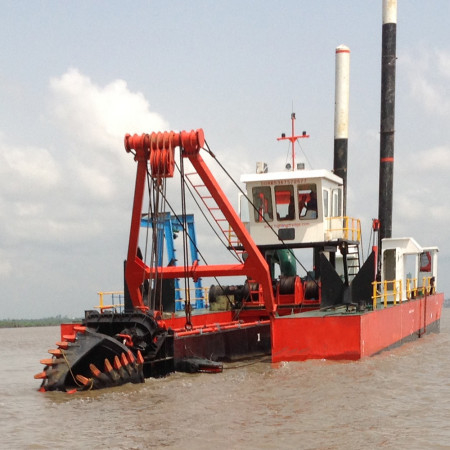

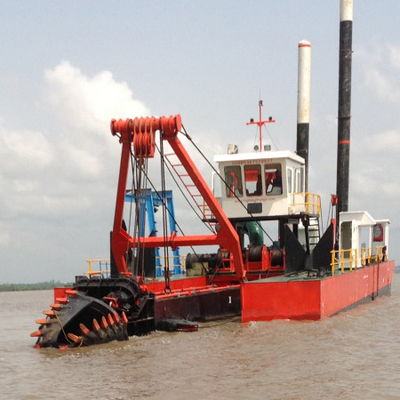

6000m³ 26inch Heavy Type Diesel Engine Power Sand Suction Dredger With Cutter Head

Product Specifications

Attribute	Value
Name	Heavy type diesel power sand suction dredger
Type	Sand suction dredger
Sand Pump	530WN
PLC Brand	SIEMENS
Side Plate Thickness	6-25mm
Spud Length	Up to 25m
Draft	1.2m
Output Distance	3000m
Sand Pump Brand	Shijiazhuang Industrial Factory
Equipment Weight	290 tons

Product Overview

Weifang Jin Meng Dredger Co., Ltd. is recognized for its strong technical expertise, high-quality heavy type diesel power sand suction dredgers, and excellent after-sales service. Our products serve domestic markets across multiple provinces and international markets including India, Iran, Oman, UAE, Argentina, Colombia, Saudi Arabia, and more.

Our company features a professional R&D department, CAD design center, quality control department, and after-sales service team. With over 500 employees, including senior engineers, designers, and quality control specialists, we maintain rigorous standards in dredger manufacturing.

Technical Specifications

Model	JMD650 Heavy Type Diesel Power Sand Suction Dredger
Dredging Pump	650mm discharge pipe diameter
Head	65m
Max. Working Capacity	1100m³/h
Discharge Distance	4000m
Dredging Depth	18m
Diesel Engine	1885KW Mitsubishi
Hydraulic Auxiliary Engine	522KW Cummins
Emergency Generator	30KW WEICHAI
Total Power	2437KW
Oil Consumption	365L/H
Hull Dimensions (LOA×W×D)	50m × 8.8m × 2.5m

Features and Applications

This heavy type diesel power sand suction dredger is equipped with horizontal shifting devices, cutter ladder lifting systems, spud devices, and deck crane. It can be customized with anchoring poles and trolley systems for enhanced functionality.

Primary applications include river dredging, desilting, channel reclamation, and sand extraction in rivers, saltwater, or calm sea conditions.

Customization Options
