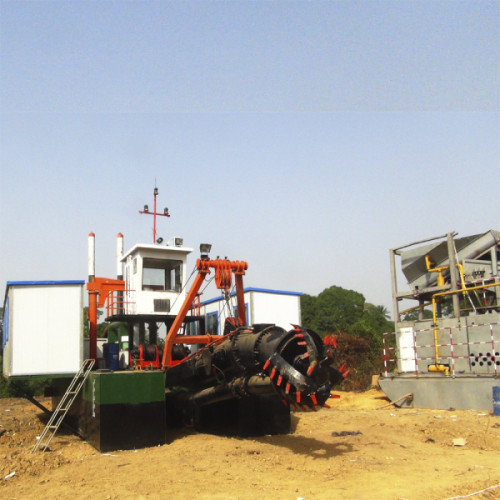

Powerful Small Dredger Equipment with 522kw Engine Power and 100-600 Meters Discharge Distance

Small Dredger Equipment Description:

The Small Dredger Equipment is a top-of-the-line solution for all your dredging needs. This small dredger machine is designed to provide efficient and reliable performance in various water bodies, making it a versatile choice for dredging projects of all sizes.

Equipped with a powerful diesel engine, this small dredger machine ensures optimal performance and durability. The diesel engine serves as a robust power source, guaranteeing consistent and efficient operation throughout your dredging tasks.

One of the standout features of this small dredger is its fuel efficiency, consuming only 80 liters per hour. This not only helps in reducing operational costs but also ensures long hours of uninterrupted dredging, making it a cost-effective choice for your projects.

The pump of this small dredger equipment is sourced from Shijiazhuang, known for its high-quality and reliable pumps. This ensures superior suction and discharge capabilities, allowing you to tackle various types of sediments with ease and efficiency.

This small dredger equipment is a small type hydraulic controlled, assembling cutter suction small dredger equipment. It is used for river channel dredging, canal and water storage dredging. The dredging devices are driven by hydraulic, concentrate controlled. The main small dredger equipment body is made up of three pontoons, which can be assembled when dredging. The operator cabin is dismountable,which can lower the height of the small dredger equipment when maneuvering and allow the small dredger equipment to pass bridges. When the small dredger is transported long distance or passing not conjunctive water areas,the small dredger body can be dismounted and transported by trucks or trains. The small dredger equipment can be fixed with anchor casting pole, trolley.The cutter driving device use lub oil and sealings.

Small Dredger Equipment Features:

• Product Name: Small Dredger Equipment
• Cutter Head Diameter: 0.8-1.2 Meters
• Pump: Shijiazhuang
• Fuel Consumption: 80 Liters Per Hour
• Power Source: Diesel Engine
• Dredging Depth: 1-10 Meters

JMD350 Small Dredger Equipment Technical Parameters:

Small Dredger Equipment Applications:

The Jin Meng JMD350 small dredger machine is a powerful and efficient equipment designed for various dredging applications. With its place of origin in China, this small dredger is built to handle a wide range of tasks with precision and reliability.

One of the key features of the Jin Meng JMD350 small dredger is its discharge pipe diameter of 350mm, allowing for effective dredging operations in different water bodies. Powered by a robust diesel engine, this small dredger machine is capable of delivering impressive performance while ensuring fuel efficiency with a consumption rate of 80 liters per hour.

Equipment on small dredger equipment are as bellows: traversing device, cutter ladder lifting device, spuds and deck crane.

The small dredger equipment working process is as following: the cutter head cut the sand underwater to mixture of slurry, then through dredging pump to the pipeline; at the end of the slurry will be discharged by pipeline on land to the required place.

Functions of small dredger equipment: river dredging, desilting, reclamation for channels and land, especially for sand dredging in river, salty water or peaciful sea.

Small Dredger Equipment Customization:

Product Customization Services for the Small Dredger Equipment:

Brand Name: Jin Meng

Model Number: JMD350

Place Of Origin: China

The small dredger equipment can be custom made according to customers’ requirements:

1. Anchor booms installation

2. Spud carriage

3. Small Dredger equipment position of 5 anchors.

4. Hydraulic driving for spud flat down(to pass and transport on water safely).

5. Make the small dredger equipment with extra dredging pump underwater to deepen dredging depth for 20-30m underwater and slurry concentration is more than 30%.

6. Make the small dredger equipment with booster station to further the discharge distance.

Small Dredger Equipment Services:

1) Party A will send 2 qualified and experienced engineers to Party B's workplace to direct and guide the small dredger equipment's installation and training operating, if needed. .

2) To assist in the installation; Party B will arrange for 6-8 workers to aid these engineers.

3) Installation and test period is expected to take 10-15days for one small dredger equipment with full ready of installation.

4) Party A's engineers must arrive at Party B's designated place within 3 days after the small dredger equipment has been transported to the workplace.

5) After the small dredger equipment's complete installation, Party B Can coordinate Party A's engineers to test small dredger equipment's performance in appropriate water. Small dredger equipment test includes: operation of the dredging, hydraulic and electrical systems, running of the small dredger equipment's outfitting equipment, and Party A's engineers' debugging of the small dredger equipment's natural work.

Small Dredger Equipment Packing and Shipping:

Product Packaging for Small Dredger Equipment:

The Small Dredger Equipment is carefully packaged in a sturdy cardboard box to ensure safe transport. Each component is securely wrapped in bubble wrap to prevent any damage during shipping.

Shipping Information:

Once your order is confirmed, the Small Dredger Equipment will be shipped within 2 business days. We use trusted carriers for shipping to ensure timely delivery to your doorstep.

Weifang Jin Meng Dredger Company Factory and Workshop

JMD350 Small Dredger Equipment in Working Site

JMD350 Small Dredger Equipment Installation and Training
