| Brand Name: | Jin Meng |
|---|---|
| Certification: | ISO |
| Model Number: | JMD450 |
| Minimum Order Quantity: | 1 Set |
| Price: | $300000-$500000 |
| Packaging Details: | Bulk |
| Delivery Time: | 30days |
| Payment Terms: | TT |
| Supply Ability: | 20sets/year |
| Control System: | Remote Or Manual | Fuel Tank Capacity: | 1000-6000 Liters |
|---|---|---|---|
| Cutter Head Type: | Crown-like | Dredging Capacity: | 500 Cubic Meters Per Hour |
| Cutter Head Power: | 100kW | Power Type: | Diesel Or Electric |
| Discharge Distance: | 2000m | Pump Head: | 55 Meters |
| Attribute | Value |
|---|---|
| Control System | Remote Or Manual |
| Fuel Tank Capacity | 1000-6000 Liters |
| Cutter Head Type | Crown-like |
| Dredging Capacity | 500 Cubic Meters Per Hour |
| Cutter Head Power | 100kW |
| Power Type | Diesel Or Electric |
| Discharge Distance | 2000m |
| Pump Head | 55 Meters |

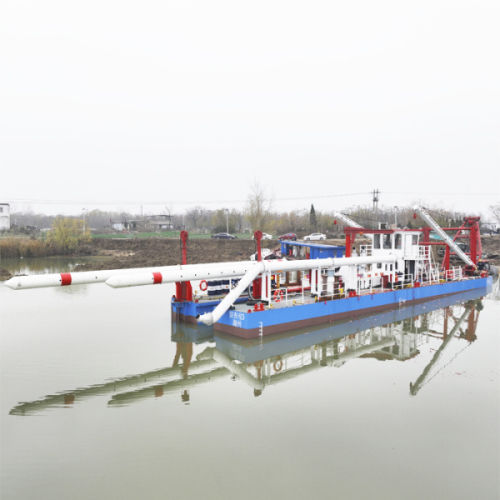

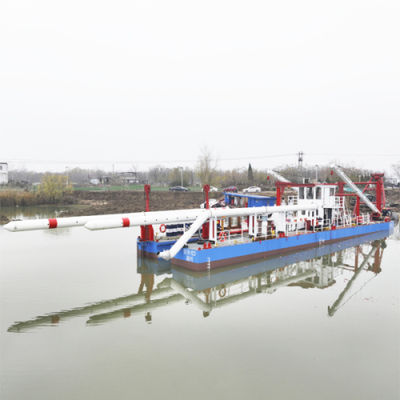

The Cutter Head Suction Dredge is an advanced and efficient solution for dredging operations in rivers and other water bodies. This powerful machine features a crown-like cutter head that effectively cuts through various materials, making it ideal for diverse dredging tasks.
Designed as a dismantle-type non-self-propelled cutter suction dredger, it's suitable for dredging soil types II-IV, including fine sand, clay, silt, and coarse sand in inland waters and coastal areas. The hull consists of five pontoons (one main and four side) made of full steel welding, combined with specially designed connecting pieces for easy assembly and disassembly.
| Parameter | Value |
|---|---|
| Model | JMD450 Cutter Suction Dredge |
| Dredging Pump Discharge Pipe | 450mm |
| Max. Working Capacity | 400m³/h |
| Dredging Depth | 12m |
| Diesel Engine | 746KW Cummins |
| Total Power | 762KW |
| Hull Dimensions (LOA×W×D) | 37m×6.9m×1.8m |
The JMD450 Cutter Head Suction Dredge is designed for river channel dredging, canal and water storage dredging. Its hydraulic-controlled, assembling design allows for easy transportation and operation under bridges. The dredge can be dismounted for transport by trucks or trains when needed.
We provide comprehensive technical support including installation guidance, operator training, and performance testing. Our engineers will assist with installation and conduct thorough testing of all systems including dredging, hydraulic, and electrical components.
