| Place of Origin: | China |
|---|---|
| Brand Name: | JIN MENG |
| Certification: | ISO9001 |
| Model Number: | JMD550 |
| Minimum Order Quantity: | 1set |
| Price: | $300000-$800000 |
| Packaging Details: | Bulk |
| Delivery Time: | 30days |
| Payment Terms: | T/T |
| Supply Ability: | 10sets/year |
| Name: | Sea Sand Reclamation Cutter Suction Dredger | Type: | Cutter Suction Dredger |
|---|---|---|---|
| Function: | River, Sea, Lake,pod,channel Dredging | Working Capacity: | 700m3/h |
| Total Power: | 1662kw | Engine: | Cummins Mitsubishi |
| Control System: | SIEMENS PLC | Hydraulic Pump: | Vickers |
| Discharge Distance: | 3000m | Delivery Time: | 30days |
| Highlight: | Cutter Suction Dredger 22inch,Sand Reclamation Cutter Suction Dredger,22 inch suction dredge |
||
22inch Sea Sand Reclamation with High Cutter Power Cutter Suction Dredger
1.Cutter Suction Dredger Introductions
Reliable cutter suction dredger machine manufacturer Weifang Jin Meng Dredger Co.,Ltd. is located in Qingzhou, Weifang City, Shandong Province of China, and we have been specialized in sea sand reclamation cutter sucton dredger manufacturing since 2000. Our sea sand reclamation cutter sucton dredgers have a good price advantage and cover most of the African, Middle East, South East Asian and South American and American markets. We look forward to becoming your long-term partner in China.
2. Weifang Jin Meng Sea Sand Reclamation Cutter Sucton Dredger
Our company sea sand reclamation cutter sucton dredger is self-propelled or non self-propelled,sea sand reclamation cutter sucton dredger. The hull uses dismantle and box-like structure, Its dismantle type can be assembly at working place easily and be transported by road, railway and container accordingly, convenient in installation and working place moving from one to another. The power system can be designed to electric system or diesel engine driving system according to customers’ requirements.Equipment on the sea sand reclamation cutter sucton dredger are as bellows: traversing device, cutter ladder lifting device, spuds and deck crane. The working process is as following: the cutter head cut the sand and mud underwater to mixture of slurry, then through dredging pump to the pipeline on sea sand reclamation cutter sucton dredger; at the end the slurry will be discharged by pipeline on land to the required place.
3. Weifang Jin Meng Sea Sand Reclamation Cutter Sucton Dredger Technical Specifications
| JMD550 22inch Sea Sand Reclamation Cutter Suction Dredger | |||
| WARMAN Dredging Pump |
Dia. Discharge pipe | 550mm | |
| Head | 65m | ||
| Max. Working capacity | 900m3/h | ||
| Discharge distance | 3000m | ||
| Dredging depth | 14m | ||
Diesel Engine |
1306KW | Cummins | |
| Hydraulic Auxiliary engine | 336KW | Cummins | |
| Emergency Generator | 20KW | WEICHAI | |
| Total power | 1662KW | ||
| Oil Consumption | 250L/H | ||
| Hull Dismension | LOA*W*D | 42m×7.5m×2.0m | |
| Hydraulic system | Hydraulic pump | VICKERS America (Joint-venture) | |
| Hydraulic Motor | Italy SAI technology(Joint-venture) | ||
| Valves | REXROTH Germany (Joint-venture) | ||
| Operating system | SIEMENS PLC(Imported from Germany) | ||
| Ladder winch | Tension | 120KN | |
| Swing winch | Tension | 120KN | |
| Cutter Head | Crown-like | Φ1800mm | |
| Power | 200KW | ||
4. Weifang Jin Meng Sea Sand Reclamation Cutter Sucton Dredger Feature and Application
This Weifang Jin Meng sea sand reclamation cutter sucton dredger is equipped with horizontal shifting devices, cutter ladder lifting devices, spud devices, deck crane and so on. It can also be equipped with anchoring poles and trolley devices. Generally, it has functions on dredging, conveying and discharging of mud or sand. It can produce certain amount of vacuum by the centrifugal pump.
5. Weifang Jin Meng Sea Sand Reclamation Cutter Sucton Dredger Details
Design
Our river cleaning cutter sucton dredger is designed by senior engineer, who have specialized in shipbuilding and dredging work for many years, to guarantee they are well-designed and practical.
Cummins Engine
The river cleaning cutter sucton dredger is equipped with world famous powerful Cummins engine, which are famous for its durability, lower oil consumption, standardized accessories and easy maintenance.
Hydraulic system
The most important parts of river cleaning cutter sucton dredger and wheel bucket dredger. The hydraulic system requirements are very high and strict; it’s the main artery of the entire dredger. Lateral traction winches, lifting winch and cutter head of the dredgers are driven by hydraulic motors.
An integral hydraulic system includes hydraulic oil tanks, hydraulic pump, hydraulic valve manifold, solenoid valve, hydraulic pipes, hydraulic components, electrical actuator and so on.

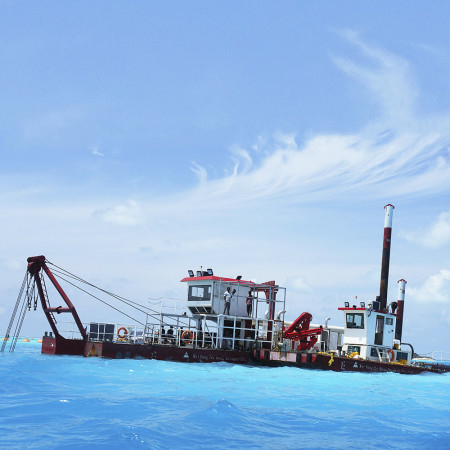

JMD550 22inch cutter suction dredger sea sand reclamation in Maldives

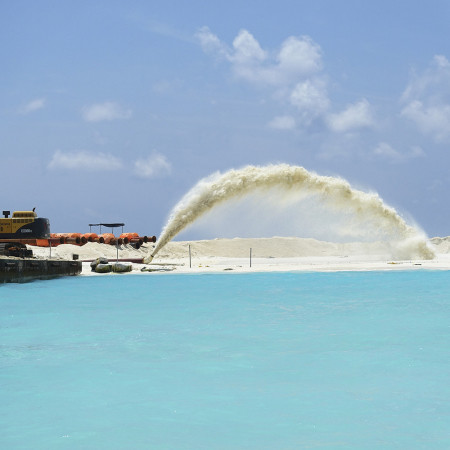

JMD550 22inch Cutter Suction Dredger Installation at working site
