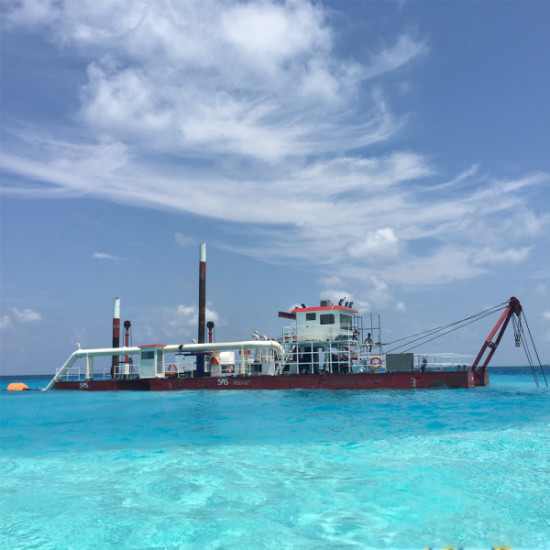

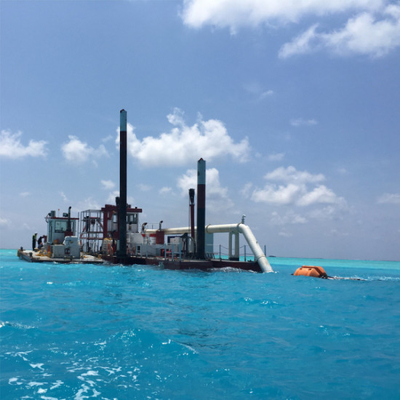

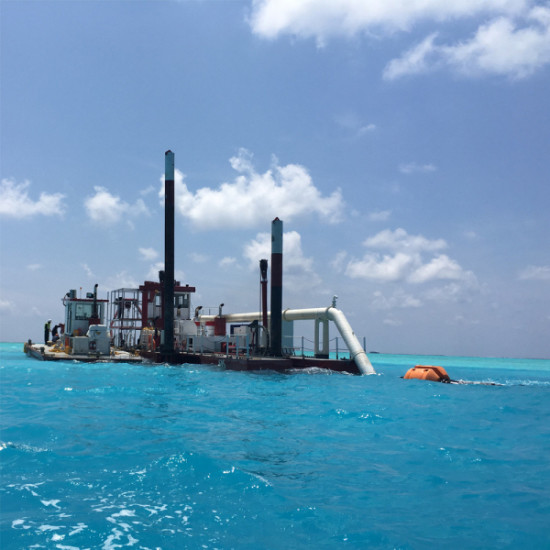

Sea Sand Reclamation China River Dredger Boat With Cutter Head

Basic Information

Place of Origin:	China
Brand Name:	JIN MENG
Certification:	ISO9001
Model Number:	JMD550

Minimum Order Quantity:	1set
Price:	$500000-$800000
Packaging Details:	Bulk
Delivery Time:	30days
Payment Terms:	T/T
Supply Ability:	10set/year

Get Best Price Contact Now

Name:	Sea Sand Reclamation China River Dredger	Type:	Cutter Suction River Dredger
Suction Pipe Dia:	600 Mm	PLC:	SIEMENS
Water Flow:	4000m3	Position Way:	Hydraulic Spud Or Spud Carriage
Colour:	Customized	Sand Pump Brand:	Shijiazhuang Industrial Factory
Discharge Distance:	Up To 2000m	Hydraulic Winch:	Xinhong Brand
Highlight:	river dredger 4000m3 , Hydraulic Spud dredger boat , 4000m3 sand dredging machine

Sea Sand Reclamation China River Dredger Boat With Cutter Head

Product Specifications

Attribute	Value
Name	Sea sand reclamation China river dredger
Type	Cutter suction river dredger
Suction Pipe Diameter	600 mm
PLC	SIEMENS
Water Flow	4000m³
Position Way	Hydraulic Spud or Spud Carriage
Colour	Customized
Sand Pump Brand	Shijiazhuang Industrial Factory
Discharge Distance	Up to 2000m
Hydraulic Winch	Xinhong Brand

Company Introduction

Weifang Jin Meng Dredger Co., Ltd., located in Qingzhou, Weifang City, is a professional manufacturer specializing in sand reclamation China river dredgers, work boats, and gold dredging equipment. Our company focuses on research, design, production, and sales of high-quality dredging solutions.

We maintain a professional R&D department, CAD drawing design center, quality control department, and after-sales service team. With over 500 employees, our team includes:

5 professional senior engineers specialized in dredger building and research
16 machinery construction designers
8 quality inspection and control engineers
10 after-sales service engineers

Product Description

Our sand reclamation China river dredgers are designed, constructed, and inspected according to CCS standards and regulations. Key features include:

CCSB steel plates meeting CCS requirements
Skilled, experienced welders certified under CCS regulations
Marine-grade anti-corrosion painting materials
Cummins or MITSUBISHI diesel engines (American/German technology)
Shijiazhuang pumps with Kinda technology
Hangzhou Advance Gearbox (China famous brand)
Rexroth hydraulic system (German technology)
SIEMENS PLC system (German technology)
NSK bushes/shaft sleeves (Japanese technology)
Parker sealings (American technology)

Product Functions

Our dredgers are designed for multiple applications:

Dredging rivers and sand
Desilting operations
Land and channel reclamation
Road construction projects

Suitable working environments include seas, ports, lakes, and rivers. Capable of handling various soil conditions including hard soil, hardened sand, sludge, sea sand, river sand, clay, and mud.

Technical Specifications: JMD550 Model

Dredging Pump	Shijiazhuang
Discharge Pipe Diameter	550mm
Head	65m
Max. Working Capacity	900m³/h
Discharge Distance	3000m
Dredging Depth	14m
Diesel Engine	1306KW Cummins
Hydraulic Auxiliary Engine	336KW Cummins
Emergency Generator	20KW WEICHAI
Total Power	1662KW
Oil Consumption	250L/H
Hull Dimensions (LOA×W×D)	42m × 7.5m × 2.0m
Hydraulic System Components	VICKERS pump (America), SAI motor (Italy), REXROTH valves (Germany)
Operating System	SIEMENS PLC (Germany)
Ladder Winch Tension	120KN
Swing Winch Tension	120KN
Cutter Head	Φ1800mm crown-like, 200KW power

Customization Options

Our sand reclamation China river dredgers can be customized to meet specific requirements:

Anchor booms installation
Spud carriage configuration
5-anchor positioning system
Hydraulic driving for spud flat down for safe water transport
Dual underwater dredging pumps for 20-30m depth operations (>30% slurry concentration)
Booster station for extended discharge distance
