| Place of Origin: | ISO9001 |
|---|---|
| Brand Name: | JIN MENG |
| Certification: | ISO9001 |
| Model Number: | JMD550 |
| Minimum Order Quantity: | 1set |
| Price: | $500000-$800000 |
| Packaging Details: | Bulk |
| Delivery Time: | 30days |
| Payment Terms: | T/T |
| Supply Ability: | 10sets/year |
| Name: | China Cutter Head Sand Dredging Ship | Type: | Hydraulic Cutter Suction Dredger |
|---|---|---|---|
| Hull Material: | Marine Steel | Operating Speed: | Varies Depending On Model |
| Navigation System: | GPS, Radar, Sonar | Propulsion: | Diesel Engine |
| Cutter Power: | Crown Like | Dredging Capacity: | 600-1000m3/h |
| Size: | 22inch | Dredging Depth: | Up To 15 Meters |
| Highlight: | suction dredger ship diesel,suction dredger ship diesel engine,diesel cutting suction dredger |
||

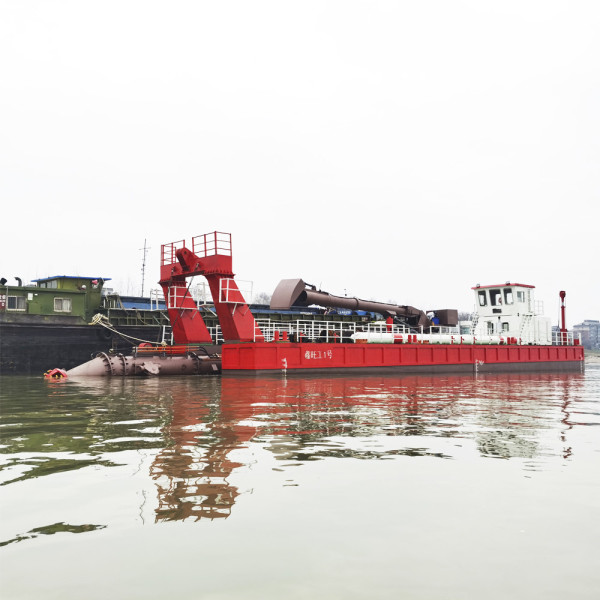

High-performance diesel engine powered dredger with capacity of 600m³/H-1000m³/H
| Attribute | Value |
|---|---|
| Name | China Cutter Head Sand Dredging Ship |
| Type | Hydraulic Cutter Suction Dredger |
| Hull Material | Marine Steel |
| Navigation System | GPS, radar, sonar |
| Propulsion | Diesel engine |
| Cutter Power | Crown like |
| Dredging Capacity | 600-1000m³/h |
| Size | 22inch |
| Dredging Depth | Up to 15 meters |
Weifang Jin Meng Dredger Co., Ltd. specializes in designing and manufacturing high-quality cutter head sand dredging ships. Our company features:
Our hydraulic cutter suction dredgers offer:
| Component | Specification |
|---|---|
| Dredging Pump | 550mm discharge pipe diameter |
| Max. Working Capacity | 900m³/h |
| Discharge Distance | 3000m |
| Dredging Depth | 14m |
| Diesel Engine | 1306KW Cummins |
| Total Power | 1662KW |
| Cutter Head | Φ1800mm crown-like design with 200KW power |
Ideal for various environments and soil conditions:
Cummins Engine: Renowned for durability, low oil consumption, and easy maintenance.
Hydraulic System: Features Vickers pumps, SAI motors, and Rexroth valves for reliable performance.
Shijiazhuang Pump: High wear-resistant alloy construction with NSK bearings.
