Up to 700mm Suction Diameter Dredging Ship 50meters in Length for Large Scale Dredging Operations

Cutter Head Dredging Ship Description:

The heart of the dredging ship lies in its pump shaft power, boasting a robust 650kW capacity. This powerful pump system enables the vessel to suction and transport large volumes of materials with ease, making dredging operations highly efficient and productive. With a total power output of 2437kW, the dredger ship is equipped to tackle even the most challenging dredging projects.

Propelled by a reliable diesel engine, the dredging ship ensures optimal performance and maneuverability during dredging operations. The diesel propulsion system provides the necessary power and efficiency to navigate through various water conditions, allowing the dredger ship to reach dredging sites swiftly and effectively.

River dredging ship is designed and constructed as a dismantle type non-self-propelled cutter suction river dredger, suitable for dredging operation of soil type II~IV, including fine sand, clay, silt, coarse sand, etc., in inland water and coastal area.

The hull of river dredger is composed by five pontoons, including one main pontoon and four side pontoons. The pontoons are full steel welding and are combined together by specially designed connecting pieces for convenient dismantle and assembly. All main parts of river dredger can be dismantled easily for transportation by sea, railway or road.

The river dredger is equipped with one diesel engine driving dredge pump.

One harbor generator is equipped.

Another notable feature of the dredging ship is its cutter diameter, measuring at 2.2 meters. The cutter plays a crucial role in loosening and breaking up compacted materials on the seabed, facilitating the dredging process and enhancing overall productivity. With its sizable cutter diameter, the dredger ship can effectively dredge and excavate materials to meet project requirements.

In conclusion, the dredging ship is a versatile and powerful vessel designed to handle dredging operations with precision and efficiency. With its impressive dredging depth, powerful pump shaft, diesel propulsion system, and sizable cutter diameter, the dredger ship is a reliable asset for marine construction, maintenance, and dredging projects. Whether clearing navigation channels, constructing ports, or reclaiming land, the dredging ship proves to be a valuable tool for ensuring safe and efficient maritime operations.

Cutter Head Dredging Ship Features:

• Product Name: Dredging Ship
• Pump Shaft Power: 650kw
• Size: Heavy Duty
• Power: 2437kW
• Cutter Diameter: 2.2 Meters
• Length: 50 meters

Cutter Head Dredging Ship Technical Parameters:

Cutter Head Dredging Ship Applications:

Equipment on cutter head dredging ship are as bellows: traversing device, cutter ladder lifting device, spuds and deck crane.

The cutter head dredging ship working process is as following: the cutter head cut the sand underwater to mixture of slurry, then through dredging pump to the pipeline; at the end of the slurry will be discharged by pipeline on land to the required place.

Functions of cutter head dredging ship: river dredging, desilting, reclamation for channels and land, especially for sand dredging in river, salty water or peaciful sea.

• Port Expansion: The Jin Meng Dredging Ship is ideal for expanding and deepening ports to accommodate larger vessels. Its heavy-duty construction and powerful suction capabilities make it a top choice for port development projects.
• Channel Dredging: Whether it's maintaining shipping channels or creating new waterways, the JMD650 is equipped to handle dredging tasks with ease. Its long length of 50 meters and suction diameter of up to 700 mm ensure efficient and thorough dredging operations.
• Land Reclamation: When reclaiming land from the sea or creating artificial islands, the Jin Meng Dredging Ship proves to be a reliable partner. Its dredging depth of 18 meters allows for extensive land reclamation projects.
• Flood Control: During flood seasons, the JMD650 can be deployed to clear waterways, remove sediment buildup, and prevent flooding in vulnerable areas. Its high supply ability of 10 sets per year ensures quick and effective flood control measures.
• Environmental Remediation: In polluted water bodies or areas with contaminated sediments, the cutter dredging ship can be used for environmental clean-up operations. Its ISO certification guarantees compliance with environmental standards.

With a minimum order quantity of 1 set and a price range of $1,000,000 to $1,400,000, the Jin Meng Dredging Ship (Model: JMD650) offers exceptional value for money. It comes with bulk packaging details, a delivery time of 100 days, and payment terms of TT. Made in China, this dredging ship is newly manufactured and ready to tackle diverse dredging challenges.

Cutter Head Dredging Ship Customization:

Product Customization Services for the suction dredging ship:

Brand Name: Jin Meng

Model Number: JMD650

Place Of Origin: China

Certification: ISO

Minimum Order Quantity: 1 Set

Price: $1000000-$1400000

Packaging Details: Bulk

Delivery Time: 100 days

Payment Terms: TT

Supply Ability: 10 sets/year

Dredge Control System: PLC And Remote Control

Hull Material: Marine Steel

Power: 2437 kW

Size: Heavy Duty

Dredging Depth: 18 Meters

Cutter Head Dredging Ship Overseas Services:

The Product Technical Support and Services for the Dredging Ship include:

- On-site troubleshooting and maintenance services

- Remote technical assistance via phone or email

- Spare parts supply and logistics support

- Training programs for operators and maintenance staff

- Warranty coverage and post-warranty service options

1) Party A will send 2 qualified and experienced engineers to Party B's workplace to direct and guide the dredging ship's installation and training operating, if needed. .

2) To assist in the installation; Party B will arrange for 6-8 workers to aid these engineers.

3) Installation and test period is expected to take 10-15days for one dredging ship with full ready of installation.

4) Party A's engineers must arrive at Party B's designated place within 3 days after the dredging ship has been transported to the workplace.

5) After the dredging ship's complete installation, Party B Can coordinate Party A's engineers to test dredging ship's performance in appropriate water. Dredging Ship Test includes: operation of the dredging, hydraulic and electrical systems, running of the dredging ship's outfitting equipment, and Party A's engineers' debugging of the dredging ship's natural work.

Cutter Head Dredging Ship Packing and Shipping:

Product Packaging:

The Dredging Ship will be securely packed in a wooden crate to ensure protection during shipping. The crate will be lined with foam padding to prevent any damage to the ship during transit.

Shipping Information:

The Dredging Ship will be shipped via a freight carrier to ensure safe and efficient delivery. Shipping times may vary depending on the destination, but we will provide you with a tracking number so you can monitor the status of your shipment.

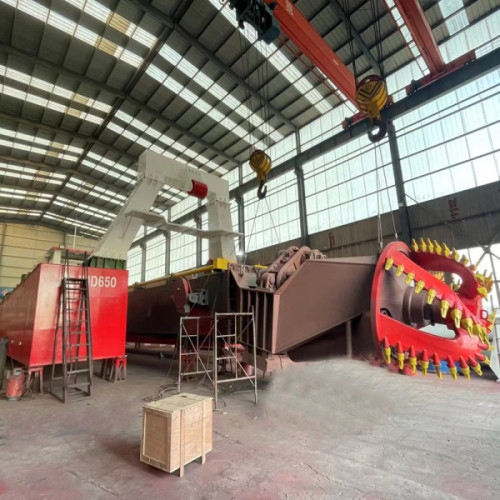

Weifang Jin Meng Dredger Company Factory and Workshop

JMD650 Cutter Head Suction Ship River Sand Dredging in Nigeria

JMD650 Cutter Head Dredging Ship Assembly in Working Site

JMD650 Cutter Head Suction Dredge Training

Newly Made Cutter Head Suction Dredge in Stock, Welcome Visit for More Details
