| Place of Origin: | China |
|---|---|
| Brand Name: | JIN MENG |
| Certification: | ISO9001 |
| Model Number: | JMD550 |
| Minimum Order Quantity: | 1 set |
| Price: | $500000-$800000 |
| Packaging Details: | Bulk |
| Delivery Time: | 30days |
| Payment Terms: | T/T |
| Supply Ability: | 10sets/year |
| Name: | 4000m3 River Sand Dredging Machine Cutter Head Dredge | Type: | Cutter Suction Sand Dredger |
|---|---|---|---|
| Pump Capacity: | 4000m3/h | Work Boat: | Available |
| Pump Brand: | KINDA | Style: | Dismountable |
| Spud Carriage: | Equipped | Sand Pump: | 500WN |
| Transportation: | In Bulk | Cutter Blade Quantity: | 5 Pieces Crown Type |
| Highlight: | 22inch cutter head dredge,cutter head dredge Crown Type,22inch river sand dredging machine |
||
| Name | 4000m3 River sand dredging machine cutter head dredge |
| Type | Cutter suction sand dredger |
| Pump Capacity | 4000m3/h |
| Work Boat | Available |
| Pump Brand | KINDA |
| Style | Dismountable |
| Spud Carriage | Equipped |
| Sand Pump | 500WN |
| Transportation | In bulk |
| Cutter Blade Quantity | 5 Pieces Crown Type |
Weifang Jin Meng Dredger operates from a 40,000 sqm facility capable of producing 8 river sand dredging machines simultaneously. With technology derived from Holland IHC and over 20 years of experience, our dredgers serve clients across Africa, Middle East, Asia, and South America.

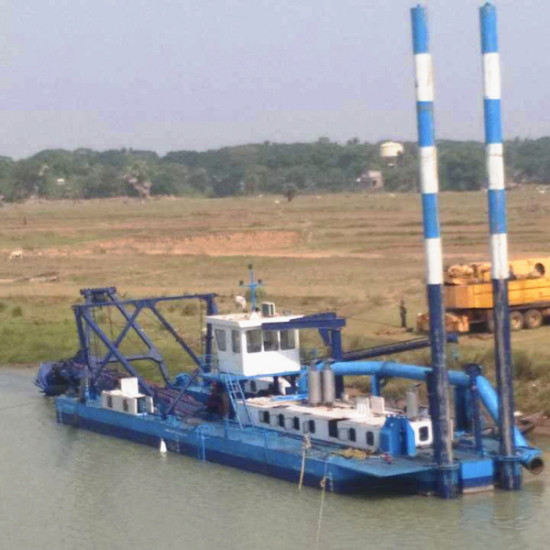

This dismantle-type, non-self-propelled cutter head dredge is engineered for dredging operations in inland waters and coastal areas, handling soil types II-IV including fine sand, clay, silt, and coarse sand.
The full steel-welded hull consists of five pontoons (one main and four side) connected with specially designed pieces for easy assembly. All major components can be disassembled for transport by sea, rail, or road.
| Dredging Pump Discharge Pipe Diameter | 550mm |
| Head | 65m |
| Max. Working Capacity | 900m3/h |
| Discharge Distance | 3000m |
| Dredging Depth | 14m |
| Diesel Engine | 1306KW Cummins |
| Hydraulic Auxiliary Engine | 336KW Cummins |
| Total Power | 1662KW |
| Cutter Head | Φ1800mm Crown-type, 200KW power |
Each dredger is built by skilled workers and undergoes rigorous testing before delivery. Our installation team provides on-site training to ensure proper operation and maintenance.
