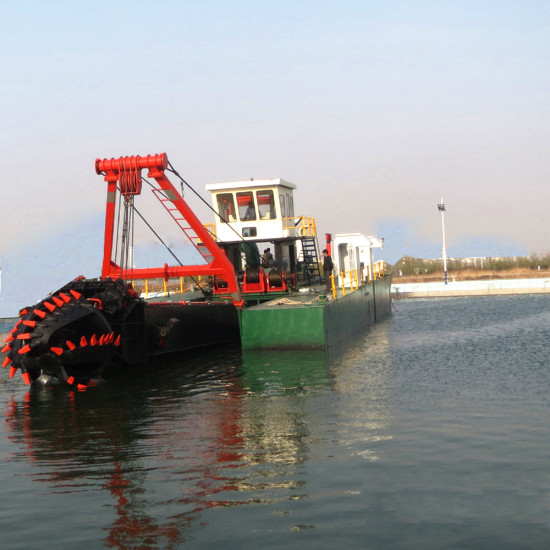

650 Mm Dredger Powered By Mitsubishi Diesel Engine For Optimal Results

JMD650 Sand Dredger Description:

Cutter Head on the sand dredger

There are total 5 blades and 8 teeth on each blade, so the total No. Of cutter teeth of cutter head is 40, and material of the teeth is high Manganese alloy which is wear-resistant.

Cutter bearing is changed to heavy-duty type, which is able to with stand greater overload and longer the service life.

Shijiazhuang Pump in the engine room of sand dredger

The material of the pump flowing through components is Cr 27, high wear-resistant alloy which can prolong the pump service life, and the shaft sealing is packing sealing which is easy to maintain, and anti-friction bearings are from Japan NSK.

Cummins Engine

Cummins engine is famous for its

-----Efficient and environment protection,

-----Power is strong,

-----Good fuel economy, and

-----Low operation cost.

Mitsubishi Engine

-----Economical investment cost and low operating costs.

-----High energy conversion rate

-----Long cycle maintenance to save further cost.

-----High standard of safe and reliable control and monitoring implementation

-----The ideal combustion, and at the same time to protect engine.

Hydraulic System

-----Hydraulic valves is Rexroth of Germany.

-----Hydraulic pump is Vickers of America

-----Control system is PLC SIEMENS of Germany.

Key point: Hydraulic oil pipes made by pipe bending machine to avoid extra weld points, which can keep the whole system stability. When the oil pump finish, should be acid packing and phosphating treatment to keep whole system clean.

Engine Room

Arrangement in the engine room

Main engine Auxiliary engine

Dredging pump Generator

Hydraulic system Emergency generator

Electric distribution cabinet and Monitors

The space is enough and easy for maintain.

Features:

• Product Name: Sand Dredger
• Cutter Head Diameter: 2.2 Meters
• Diesel Engine Power: 2,437KW
• Power Type: Diesel
• Discharge Diameter: 26 Inch
• Maximum Dredging Depth: 18 Meters

Technical Parameters:

Applications:

Sand dredging cutter suction dredger can pass low bridge easily, the controlling room and rest room are dismountable. Connecting parts for cabin room and deck are easily dismounted joints,.

Construction: it consists of three pontoons: one main pontoon and two side pontoons. The pontoons are connected by the connecting pieces and tightened by high intensity bolts and nuts.

Working site of sand dredging cutter suction dredger: sea, port, lake, and river.

Soil conditions: relative hard soil, harden sand, sludge, sea sand, river sand, clay, mud, and so on.

The Jin Meng JMD650 sand dredger is suitable for a wide range of application occasions and scenarios, making it a versatile and indispensable tool for dredging tasks. Its powerful centrifugal slurry dredging pump ensures effective and efficient sand dredging, making it ideal for clearing sediment in rivers, lakes, and coastal areas.

Powered by diesel, the Jin Meng JMD650 sand dredger provides reliable performance even in remote locations where electricity may not be readily available. Its suction pipe diameter of 700mm, cutter head diameter of 2.2 meters, and discharge pipe diameter of 650mm enable it to handle various types of sand and sediment with ease.

Whether it's for dredging harbors, reclaiming land, maintaining waterways, or extracting sand for construction projects, the Jin Meng JMD650 sand dredger proves to be a valuable asset. Its bulk packaging details, delivery time of 100 days, and payment terms of TT make the procurement process smooth and convenient for buyers.

With a supply ability of 10 sets per year, the Jin Meng JMD650 sand dredger ensures that customers can rely on timely availability of this essential equipment for their dredging needs. Invest in the Jin Meng JMD650 sand dredger to experience efficient, cost-effective, and reliable sand dredging operations for various marine and river projects.

Customization:

Customize your sand dredging dredger with our Product Customization Services:

- Brand Name: Jin Meng

- Model Number: JMD650

- Place Of Origin: China

- Certification: ISO

- Minimum Order Quantity: 1 Set

- Price: $1000000-$1200000

- Packaging Details: Bulk

- Delivery Time: 100days

- Payment Terms: TT

- Supply Ability: 10sets/year

- Cutter Head Diameter: 2.2 Meters

- Dredging Pump: Centrifugal Slurry Dredging Pump

- Certificate: ISO

- Work Boat: Available

- Discharge Pipe Diameter: 650 Mm

Support and Services:

The Product Technical Support and Services for the Sand Dredger product include:

- On-site installation and setup assistance

- Training sessions for operators and maintenance personnel

- Regular maintenance schedules and support for spare parts

- Troubleshooting guidance and remote technical assistance

- Upgrades and customization options to enhance performance

1) Party A will send 2 qualified and experienced engineers to Party B's workplace to direct and guide the sand dredger's installation and training operating, if needed. .

2) To assist in the installation; Party B will arrange for 6-8 workers to aid these engineers.

3) Installation and test period is expected to take 10-15days for one sand dredger with full ready of installation.

4) Party A's engineers must arrive at Party B's designated place within 3 days after the sand dredger has been transported to the workplace.

5) After the sand dredger's complete installation, Party B Can coordinate Party A's engineers to test sand dredger's performance in appropriate water. Sand Dredger Test includes: operation of the dredging, hydraulic and electrical systems, running of the sand dredger's outfitting equipment, and Party A's engineers' debugging of the sand dredger's natural work.

Packing and Shipping:

Product: Sand Dredger

Product Packaging:

- The Sand Dredger will be securely packed in dismountable structure and can be transported by trucks on road.

- The crate will be labeled with handling instructions and product information.

Shipping:

- The Sand Dredger will be shipped via freight carrier to the designated delivery address.

- Shipping costs will be calculated based on the delivery location and added to the total order amount.

Weifang Jin Meng Dredger Company Factory and Workshop

JMD650 Cutter Head Sand Dredger Welding Work in Workshop

Newly Made Cutter Head Sand Dredger in stock Welcome Visit Our Factory for More Details

JMD650 Cutter Suction Sand Dredger fro Dredging Work

JMD650 Cutter Suction Sand Dredger Installation and Training
