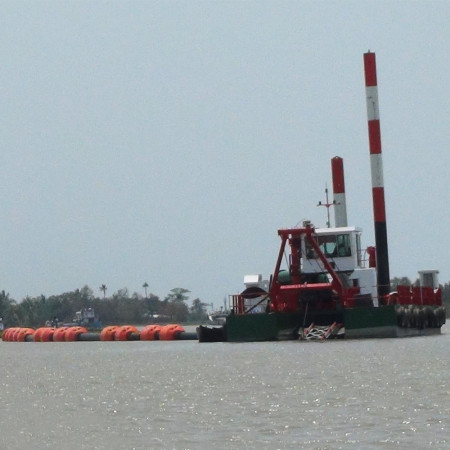

26 Inch Sand Dredger For Dredging Works And Projects With Optional Anchor Boom

Sand Dredger Product Description:

A sand suction dredger is a powerful and efficient vessel designed for the dredging and excavation of sand and sediment from bodies of water. This essential piece of equipment is commonly used in various industries such as construction, mining, and environmental restoration.

The Sand Dredger product offered originates from Shandong, China, known for its high-quality manufacturing and engineering expertise in the field of dredging equipment. With a strong emphasis on durability and performance, this sand dredging dredger is built to withstand tough marine conditions and deliver reliable operation.

All sand dredger design, construction, quality inspection is according to the standards and regulations of CCS.

The sand dredger steel plates are CCSB plates which meet the requirements of CCS.

The welders are skillful and experienced and certified under the regulations of CCS.

Anti-corrosion paints material is marine use under the requirements of CCS.

The installation concentricity of sand dredger diesel engine is less than 0.05mm.

Above regulations is the core guarantee to sand dredger quality.

Equipped with advanced dredging technology and robust construction, this sand suction dredger is a reliable asset for any dredging project. Its powerful suction pump and efficient dredging system ensure the quick and thorough removal of sand and sediment, making it an ideal choice for demanding dredging applications.

With a focus on performance, reliability, and ease of operation, the Sand Dredger product is designed to meet the needs of dredging professionals and operators. Its comprehensive features and high-quality components make it a valuable investment for any organization involved in sand dredging and excavation activities.

Sand dredger is designed and constructed as a dismantle type non-self-propelled cutter suction river sand dredger, suitable for dredging operation of soil type II~IV, including fine sand, clay, silt, coarse sand, etc., in inland water and coastal area.

The hull of sand dredger is composed by five pontoons, including one main pontoon and four side pontoons. The pontoons are full steel welding and are combined together by specially designed connecting pieces for convenient dismantle and assembly. All main parts of sand dredger can be dismantled easily for transportation by sea, railway or road.

Sand Dredger Features:

• Product Name: Sand Dredger
• Anchor Boom: Optional
• Cutter Head Diameter: 2.2 Meters
• Origin: Shandong, China
• Specification: 26 Inch
• Material: CCS Marine Using Plate

JMD650 Sand Dredger Technical Parameters:

Sand Dredger Applications:

The Jin Meng Sand Dredger, model JMD650, is a top-quality product originating from China. With ISO certification, this sand dredger is designed for demanding dredging works and dredging projects. The dredger's powerful centrifugal pump ensures efficient sand dredging operations, making it ideal for various scenarios.

Equipment on sand dredger are as bellows: traversing device, cutter ladder lifting device, spuds and deck crane.

The sand dredger working process is as following: the cutter head cut the sand underwater to mixture of slurry, then through dredging pump to the pipeline; at the end of the slurry will be discharged by pipeline on land to the required place.

Functions of sand dredger: river dredging, desilting, reclamation for channels and land, especially for sand dredging in river, salty water or peaciful sea.

For any sand dredging project that requires a durable, efficient, and high-performance cutter suction sand dredger, the Jin Meng Sand Dredger is the perfect choice. Trust in this product to deliver exceptional results and streamline your dredging operations with ease.

Sand Dredger Customization:

Customize your sand dredging dredger with our Product Customization Services:

- Brand Name: Jin Meng

- Model Number: JMD650

- Place Of Origin: China

- Certification: ISO

- Minimum Order Quantity: 1 Set

- Price: $1000000-$1200000

Sand Dredger position of 5 anchors.

Hydraulic driving for spud flat down(to pass and transport on water safely).

Make the sand dredger with extra dredging pump underwater to deepen dredging depth for 20-30m underwater and slurry concentration is more than 30%.

 Make the sand dredger with booster station to further the discharge distance.

Sand Dredger Overseas Services:

The Sand Dredger product comes with comprehensive Product Technical Support and Services to ensure optimal performance and longevity. Our team of experts is available to provide assistance with installation, operation, and maintenance of the Sand Dredger. Additionally, we offer training programs to help operators maximize the efficiency of the equipment and troubleshoot any issues that may arise.

Sand Dredger Packing and Shipping:

Product Packaging:

The Sand Dredger will be securely packaged in a durable wooden crate to ensure safe transport and delivery.

Shipping:

We offer worldwide shipping for the Sand Dredger product. Shipping costs will be calculated based on the destination and preferred shipping method. Please contact our customer service team for more information.

Weifang Jin Meng Dredger Company Factory and Workshop

JMD650 Sand Dredger Working in Bangladesh for River Desilting

JMD650 Sand Dredger Assembly and training in Working Site

Welcome Visit Our Factory for More Sand Dredger Details
