Portable Cutter Suction Dredger SIEMENS PLC Control System with 1200m Discharge Distance

Portable Small Dredger Description:

The Small Dredger is a versatile and efficient product designed for various dredging applications. As a small cutter suction dredger, it offers exceptional performance and reliability in narrow water environments. With a Cutter Head Diameter of 1300mm, this small dredger is perfect for precise and effective dredging operations.

Equipped with a cutting-edge Control System, the Small Dredger features a SIEMENS PLC that ensures

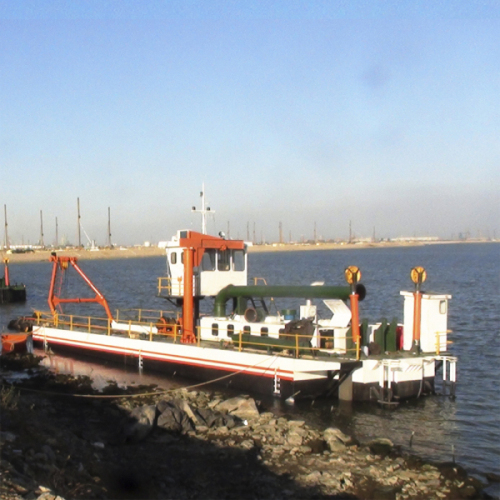

This small dredger is a small type hydraulic controlled, assembling cutter suction small dredger. It is used for river channel dredging,canal and water storage dredging. The dredging devices are driven by hydraulic, concentrate controlled. The main small dredger body is made up of three pontoons, which can be assembled when dredging. The operator cabin is dismountable,which can lower the height of the dredger when maneuvering and allow the small dredger to pass bridges. When the small dredger is transported long distance or passing not conjunctive water areas,the small dredger body can be dismounted and transported by trucks or trains. The small dredger can be fixed with anchor casting pole,trolley.The cutter driving device use lub oil and sealings.

The Small Dredger is ideal for a wide range of applications, including Narrow Water Cleaning Dredging. Whether removing sediment, debris, or contaminants from small water bodies, this small dredger delivers exceptional performance and results.

Portable Small Dredger Features:

• Product Name: Small Dredger
• Fuel Type: Diesel
• Discharge Distance: 1200m
• Cutter Power: 60kw
• Application: Narrow Water Cleaning Dredging
• Product Type: Cutter Suction Dredger

Portable Small Dredger Technical Parameters:

Portable Small Dredger Applications:

A Portable cutter suction dredger like the Jin Meng JMD350 is a versatile small dredger designed for various application occasions and scenarios. Its portability and compact size make it ideal for narrow water cleaning dredging projects in a variety of environments.

Canal Dredging: The portable small dredger JMD350 can efficiently dredge canals, ensuring smooth water flow and preventing flooding in urban areas.

Mining Industry: With its solid capacity and dredging depth capabilities, this portable small dredger is suitable for extracting minerals from underwater mines.

Environmental Remediation: The portable small dredger JMD350 can be used for environmental cleanup projects, removing pollutants and restoring water bodies.

Constructed with marine steel, the Jin Meng JMD350 is durable and reliable for long-term use. Its total width ranging from 4.5m to 12m allows for flexibility in different dredging scenarios. The control system of this small dredger is equipped with SIEMENS PLC technology, ensuring precise and efficient operation.

The Jin Meng JMD350 is suitable for a wide range of application scenarios, including but not limited to river dredging, lake cleaning, and harbor maintenance. With a discharge distance of 1200m, this portable dredger can effectively remove sediment and debris from targeted areas.

With a supply ability of 30 sets per year, the Jin Meng JMD350 is readily available for various dredging projects worldwide. Its compact size, high performance, and reliable technology make it a top choice for contractors and operators in need of a small dredger for efficient water cleaning and dredging tasks.

Portable Small Dredger Customization:

Customize your Portable Dredger with our Product Customization Services for the Small Dredger:

Brand Name: Jin Meng

Model Number: JMD350

Place Of Origin: China

Certification: ISO

Minimum Order Quantity: 1 Set

Portable small dredger can be customized according to customers’ requirements:

1. Anchor booms installation.

2. Spud carriage installation.

3. 5 anchors are equipped on portable small dredger to replace spuds for better balance.

4. Hydraulic driving for spud flat down(to pass and transport on water safely).

5. Make the portable small dredger with extra dredging pump underwater to increase dredging depth for 20-30m underwater and guarantee slurry concentrationtp reach 30%.

6. Make the portable small dredger with booster station to further discharge distance.

Portable Small Dredger Overseas Services:

Our Small Dredger product comes with comprehensive technical support and services to ensure optimal performance and customer satisfaction. Our team of experts is available to assist with installation, troubleshooting, and maintenance of the dredger. Additionally, we offer training programs to educate customers on the proper operation and care of the equipment.

Our goal is to provide reliable and efficient support to help customers maximize the benefits of our Small Dredger product. Whether you have questions about product specifications, need assistance with repairs, or require guidance on best practices, our technical support team is here to help.

Portable Small Dredger Packing and Shipping:

Product Packaging for Small Dredger:

- The Small Dredger will be carefully packed in a sturdy cardboard box to ensure safe transportation.

- Each component of the dredger will be securely wrapped and cushioned to prevent any damage during shipping.

Shipping Information:

- Shipping will be handled by a reputable carrier to ensure timely delivery.

- Customers will receive tracking information to monitor the status of their shipment.

Weifang Jin Meng Dredger Company Factory and Workshop

JMD350 Portable Small Dredger for River Desilting in Guyana

JMD350 Portable Small Dredger Installation and Training

Newly Made JMD350 Portable Small Dredger in Stock, Welcome Visit for More Details
