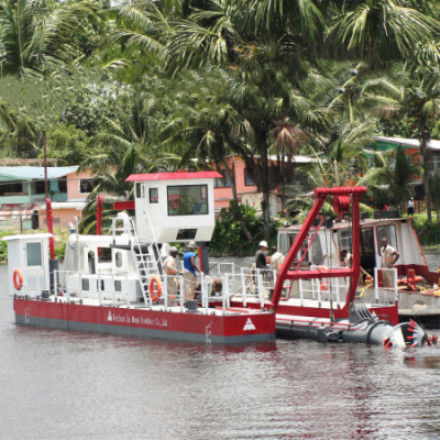

24 Liters/hour Fuel Consumption Portable Cutter Suction Dredger JMD350 For Dredging

Cutter Suction Dredger Description:

The Small Cutter Suction Dredger is a versatile and efficient solution for river dredging projects, offering exceptional performance and reliability. Powered by a robust Cummins engine with a power output of 522kw, this small cutter suction dredger is designed to tackle various dredging tasks with ease.

With a focus on river dredging applications, this portable dredger is equipped to handle a wide range of challenges, making it ideal for maintaining waterways, ports, and other aquatic environments. Its compact design and maneuverability make it a valuable asset for projects where space and accessibility are limited.

The cutter suction dredger we produce is self-propelled or non self-propelled,portable cutter suction dredger. The hull uses dismantle and box-like structure, Its dismantle type can be assembly at working place easily and be transported by road, railway and container accordingly, convenient in installation and working place moving from one to another. The power system can be designed to electric system or diesel engine driving system according to customers’ requirements.

Cutter suction dredger is designed and constructed as a dismantle type non-self-propelled cutter suction river dredger, suitable for dredging operation of soil type II~IV, including fine sand, clay, silt, coarse sand, etc., in inland water and coastal area.

The hull of cutter suction dredger is composed by five pontoons, including one main pontoon and four side pontoons. The pontoons are full steel welding and are combined together by specially designed connecting pieces for convenient dismantle and assembly. All main parts of cutter suction dredger can be dismantled easily for transportation by sea, railway or road.

The cutter suction dredger is equipped with one diesel engine driving dredge pump.

One harbor generator is equipped.

Cutter Suction Dredger Features:

• Product Name: Small Cutter Suction Dredger
• Suction Pipe Diameter: 350 mm
• Main Engine Power: Cummins 522kW
• Output Distance: 1200m
• Fuel Consumption: 24 Liters/hour
• Max Dredging Capacity: 300 Cubic Meters Per Hour

Cutter Suction Dredger Technical Parameters:

Cutter Suction Dredger Applications:

Jin Meng's small cutter suction dredger, the JMD350, is a versatile and efficient piece of equipment designed for a variety of product application occasions and scenarios.

Due to its portable nature, the JMD350 is suitable for use in rivers, lakes, reservoirs, and other small water bodies where larger dredging equipment may not be practical. Its compact size and maneuverability make it ideal for dredging projects in limited or hard-to-reach areas.

Whether it's removing sediment buildup in shallow waterways, maintaining irrigation channels, or cleaning up small harbors, the JMD350 excels in a wide range of scenarios. Its 14-inch cutter suction dredger is capable of handling various types of materials with ease, ensuring efficient and thorough dredging operations.

Functions of cutter suction dredger: dredging river, dredging sand, desilting, reclamation for channels and land, and building roads.

Working site of cutter suction dredger: sea, port, lake, and river.

Soil conditions: relative hard soil, harden sand, sludge, sea sand, river sand, clay, mud, and so on.

Overseas Services for Cutter Suction Dredger:

The Small Cutter Suction Dredger product comes with comprehensive Product Technical Support and Services to ensure optimal performance and reliability. Our team of skilled technicians is available to assist with any technical inquiries, troubleshooting, and maintenance needs. Additionally, we offer training programs to help operators maximize the efficiency and lifespan of the Small Dredger. Rest assured that our dedicated support staff is committed to providing top-notch service to all customers.

Weifang Jin Meng Dredger Company Factory and Workshop
