| Place of Origin: | China |
|---|---|
| Brand Name: | JIN MENG |
| Certification: | ISO9001 |
| Model Number: | JMD350 |
| Minimum Order Quantity: | 1 set |
| Price: | $100000-$300000 |
| Packaging Details: | Containers |
| Delivery Time: | 30days |
| Payment Terms: | T/T |
| Supply Ability: | 20sets/year |
| Name: | Small Size Cutter Head Dredging Machine Dredger | Type: | Cutter Head Small Dredger |
|---|---|---|---|
| Discharge Pipe Diameter: | 350mm | Model: | JMD350 |
| Cutter Head Diameter: | 1.3m | Warranty: | 1 Year |
| Cabin: | Equipped | Condition: | Newly Made In Stock |
| Operating System: | Hydraulic Driven | Fuel Consumption: | 80L/H |
| Dredging Depth: | 8m | ||
| Highlight: | Shallow Water Dredging Machine,1500m3 Dredging Machine,Cutter Head Dredging Machine |
||
| Attribute | Value |
|---|---|
| Name | Small size cutter head dredging machine dredger |
| Type | Cutter head small dredger |
| Discharge pipe diameter | 350mm |
| Model | JMD350 |
| Cutter head diameter | 1.3m |
| Warranty | 1 year |
| Cabin | Equipped |
| Condition | Newly made in stock |
| Operating system | Hydraulic driven |
| Fuel consumption | 80L/H |
| Dredging depth | 8m |
Weifang Jin Meng Dredger Co., Ltd. located in Qingzhou, Weifang City, is a manufacturer specializing in cutter head dredging machine dredger research, design, production, and sales.
We have a professional R&D department, CAD drawing design center, quality control department, and after-sales service department. Our company has over 200 employees, including 3 professional senior engineers for cutter head dredging machine dredger building and research, 8 machinery construction designers, 5 quality inspection and control engineers, and 10 after-sales service engineers.

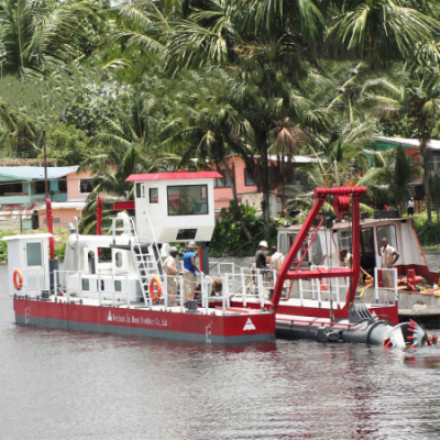

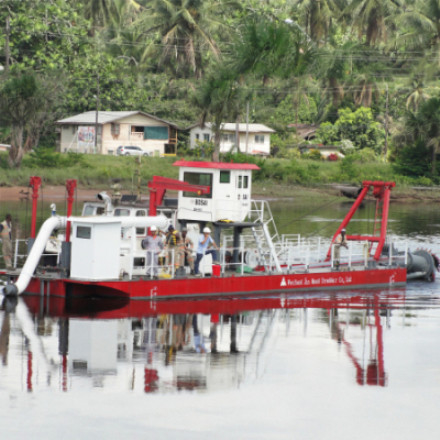

The small size cutter head dredging machine dredger we produce is self-propelled or non self-propelled, portable small cutter suction dredger. The hull uses dismantle and box-like structure, can be assembled at working place easily and transported by road, railway, or container, making installation and relocation convenient.
The power system can be designed with electric system or diesel engine driving system according to customer requirements.
The design, construction, and quality inspection follow the standards and regulations of CCS. The steel plates are CCSB plates meeting CCS requirements. Our welders are skillful, experienced, and CCS-certified. Anti-corrosion painting materials are marine-grade meeting CCS requirements.
| Diesel Engine | Cummins or MITSUBISHI (American/Japanese technology, installation concentricity <0.05mm) |
| Pump | Shijiazhuang (KINDA technology) |
| Gearbox | Hangzhou Advance Gearbox (China famous brand) |
| Hydraulic System | Rexroth (German technology) |
| PLC System | SIEMENS (Germany) |
| Bushes/Shaft Sleeve | Japan NSK |
| Sealings | Parker (America) |
| Dredging Pump | Shijiazhuang |
| Discharge Pipe Diameter | 350mm |
| Head | 55m |
| Max. Working Capacity | 200m³/h |
| Discharge Distance | 1500m |
| Dredging Depth | 8m |
| Diesel Engine | 522KW Cummins |
| Generator | 12KW WEICHIA |
| Total Power | 534KW |
| Oil Consumption | 80L/H |
| Hull Dimension (LOA×W×D) | 23m×5.2m×1.5m |
| Hydraulic Pump | VICKERS America (Joint-venture) |
| Hydraulic Motor | Italy SAI technology (Joint-venture) |
| Valves | REXROTH Germany (Joint-venture) |
| Operating System | SIEMENS PLC (Imported from Germany) |
| Ladder Winch Tension | 50KN |
| Swing Winch Tension | 50KN |
| Cutter Head | Crown-like Φ1300mm |
| Cutter Head Power | 60KW |
Small size cutter head dredging machine dredger can pass under low bridges easily. The control room and rest room are dismountable with easily dismounted connecting joints.
Construction: Consists of three pontoons (one main pontoon and two side pontoons) connected by connecting pieces and tightened by high intensity bolts and nuts.
Working Sites: Sea, port, lake, and river.
Soil Conditions: Relative hard soil, hardened sand, sludge, sea sand, river sand, clay, mud, etc.
