| Place of Origin: | China |
|---|---|
| Brand Name: | JIN MENG |
| Certification: | ISO9001 |
| Model Number: | JMD250 |
| Minimum Order Quantity: | 1set |
| Price: | $90000-$200000 |
| Packaging Details: | Containers |
| Delivery Time: | 60days |
| Payment Terms: | T/T |
| Supply Ability: | 20sets/year |
| Name: | Shallow Water Small Dredger | Type: | Cutter Suction Small Dredger |
|---|---|---|---|
| Sand Pump Size: | 150ND | Cutter Power: | 30kw |
| Discharge Diameter: | 10inch | Steel Plate Type: | Marine Steel |
| Cooling Way: | Water Cooling | Hydraulic Brand: | Germany Rexroth |
| Discharge Pipe Diameter: | 250mm | Suction Pump Brasnd: | Shijiazhuang |
| Highlight: | 10inch Small Dredger,550m3 Small Dredger,Shallow Water small dredger machine |
||
| Attribute | Value |
|---|---|
| Name | Shallow water small dredger |
| Type | Cutter suction small dredger |
| Sand Pump Size | 150ND |
| Cutter power | 30kw |
| Discharge Diameter | 10inch |
| Steel Plate Type | Marine Steel |
| Cooling Way | Water Cooling |
| Hydraulic Brand | Germany Rexroth |
| Discharge Pipe Diameter | 250mm |
| Suction Pump Brand | Shijiazhuang |
Weifang Jin Meng Dredger Co., Ltd features a professional R&D department, CAD design center, quality control department, and dedicated after-sales service team. With over 200 employees including senior engineers, designers, and service technicians, we are recognized for our technical expertise, high-quality dredgers, and excellent customer support.

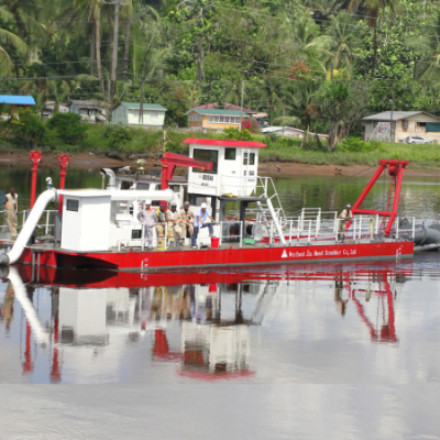

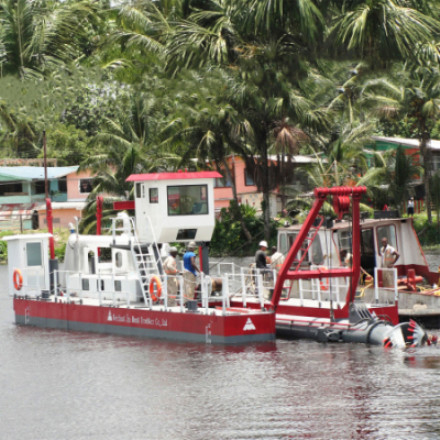

This 10inch 550m³ small dredger is designed for efficient shallow water operations. Key components include:
Operation process: The cutter head creates a sand-water slurry mixture, which is pumped through pipelines to designated discharge locations. Ideal for river dredging, desilting, reclamation projects, and sand extraction in various water conditions.
| JMD250 10inch Shallow water small dredger | |
| Dredging Pump | Shijiazhuang |
| Discharge pipe diameter | 250mm |
| Head | 35m |
| Max. Working capacity | 120m³/h |
| Discharge distance | 800m |
| Dredging depth | 6m |
| Diesel Engine | 150KW (YUCHAI) |
| Generator | 10KW (WEICHAI) |
| Total power | 160KW |
| Oil Consumption | 24L/H |
| Hull Dimensions (LOA×W×D) | 16m × 4.72m × 1.26m |
| Hydraulic system components | VICKERS pump (USA), SAI motors (Italy), REXROTH valves (Germany) |
| Operating system | SIEMENS PLC (Germany) |
| Cutter Head | Φ900mm crown-like design, 30KW power |
This hydraulic-controlled cutter suction dredger features:
Ideal for river channel maintenance, canal dredging, and water storage projects.
