Portable 16 Inch Cutter Suction Dredger 6-20mm Bottom Plate Thickness

Portable Small Cutter Suction Dredger  Description:

A small cutter suction dredger is a powerful and efficient solution for dredging projects in various water bodies. The Small Dredger product is designed to meet the demands of dredging operations with its impressive specifications and reliable performance.

One of the key features of the Small Dredger is its suction pipe diameter of 400mm, which allows for effective suction of sediment and debris from the seabed or riverbed. This ensures thorough cleaning and dredging operations, making it an ideal choice for small-scale dredging projects.

The Small Dredger boasts a water flow capacity of 1500m³, enabling it to handle large volumes of water and sediment with ease. This high water flow rate enhances the efficiency of the dredging process, enabling quick and effective removal of material from the underwater environment.

This small dredger is a small type hydraulic controlled, assembling cutter suction small dredger. It is used for river channel dredging, canal and water storage dredging. The dredging devices are driven by hydraulic, concentrate controlled. The main small dredger body is made up of three pontoons, which can be assembled when dredging. The operator cabin is dismountable,which can lower the height of the dredger when maneuvering and allow the small dredger to pass bridges. When the small dredger is transported long distance or passing not conjunctive water areas,the small dredger body can be dismounted and transported by trucks or trains. The small dredger can be fixed with anchor casting pole,trolley.The cutter driving device use lub oil and sealings.

In summary, the Small Dredger is a versatile and efficient solution for small-scale dredging projects. With its impressive specifications, including a suction pipe diameter of 400mm, water flow capacity of 1500m³, suction diameter of 16 inches, Cummins 522kw main engine power, and Germany Rexroth hydraulic components, this dredger is designed to deliver high performance and reliable results.

Portable Small Cutter Suction Dredger Features:

• Product Name: Small Dredger
• Water Flow: 1500m³
• Suction Pipe Diameter: 400mm
• Bottom Plate Thickness: 6-20mm
• Model: JMD350 14inch Cutetr Suction Dredger
• Maximum Dredging Depth: 10 Meters

Portable Small Cutter Suction Dredger Technical Parameters:

Small Portable Cutter Suction Dredger Applications:

Small cutter suction dredgers like the Jin Meng JMD350 are versatile equipment designed to handle various dredging tasks in different environments. The compact size and portability of this small dredger make it suitable for a wide range of application occasions and scenarios. Here are some key product application occasions and scenarios for the Jin Meng JMD350:

- **Small Waterways**: The small cutter dredger is ideal for dredging small waterways such as rivers, lakes, and ponds. Its maneuverability and efficient dredging capabilities make it perfect for maintaining and deepening these water bodies.

- **Marinas and Ports**: The Jin Meng JMD350 is well-suited for dredging marinas and ports where space may be limited. Its small size allows it to navigate tight spaces while its powerful engine ensures effective dredging operations.

- **Environmental Remediation**: This portable cutter suction dredger is also used for environmental remediation projects such as cleaning up polluted water bodies or removing sediment from sensitive ecosystems. Its precision dredging capabilities help in restoring the ecological balance.

- **Land Reclamation**: The small cutter suction dredger is commonly employed in land reclamation projects to create new land from underwater areas. The Jin Meng JMD350's maximum dredging depth of 10 meters and strong suction power make it efficient for such applications.

- **Infrastructure Development**: Infrastructure projects like building bridges, pipelines, or offshore platforms often require dredging work. The Jin Meng JMD350's high supply ability and sturdy construction make it a reliable choice for such demanding scenarios.

The small dredger we produce is self-propelled or non self-propelled,portable cutter suction dredger. The hull uses dismantle and box-like structure, Its dismantle type can be assembly at working place easily and be transported by road, railway and container accordingly, convenient in installation and working place moving from one to another. The power system can be designed to electric system or diesel engine driving system according to customers’ requirements.Equipment on thesmall dredger are as bellows: traversing device, cutter ladder lifting device, spuds and deck crane. The working process is as following: the cutter head cut the sand and mud underwater to mixture of slurry, then through dredging pump to the pipeline on small dredger; at the end the slurry will be discharged by pipeline on land to the required place.

Functions of small dredger: dredging river, dredging sand, desilting, reclamation for channels and land, and building roads.

Working site of small dredger: sea, port, lake, and river.

Soil conditions: relative hard soil, harden sand, sludge, sea sand, river sand, clay, mud, and so on.

Portable Small Cutter suction Dredger Customization:

Product Customization Services for the Small Dredger:

- Brand Name: Jin Meng

- Model Number: JMD350

- Place Of Origin: China

- Certification: ISO

- Minimum Order Quantity: 1 Set

- Price: $100,000 - $300,000

- Packaging Details: Containers

- Delivery Time: 60 days

- Payment Terms: TT

- Supply Ability: 30 sets/year

- Water Flow: 1500m³

- Suction Pump Brand: Shijiazhuang

- Hydraulic Brand: Germany Rexroth

- Condition: Newly Made In Stock

- Steel Plate Type: Marine Steel

Portable Small Dredger Overseas Services:

The Small Dredger product comes with comprehensive Product Technical Support and Services to ensure optimal performance and customer satisfaction. Our dedicated team of technical experts is available to provide assistance with installation, troubleshooting, and maintenance. Additionally, we offer regular product updates, training sessions, and on-site support to address any issues that may arise. Our goal is to deliver high-quality support services to help maximize the efficiency and longevity of your Small Dredger.

The small dredgers can be custom made according to customers’ requirements:

1. Anchor booms installation

2. Spud carriage

3. Small dredger position of 5 anchors.

4. Hydraulic driving for spud flat down(to pass and transport on water safely).

5. Make the small dredger with extra dredging pump underwater to deepen dredging depth for 20-30m underwater and slurry concentration is more than 30%.

6. Make the small dredger with booster station to further the discharge distance.

Small Dredger Packing and Shipping:

Product Packaging:

The Small Dredger will be carefully packaged in a sturdy cardboard box to ensure its safe delivery. Each component will be securely wrapped and cushioned to prevent any damage during transit.

Shipping:

We offer fast and reliable shipping for the Small Dredger. Once your order is confirmed, the product will be dispatched within 1-2 business days. Delivery times may vary depending on your location, but we strive to ensure timely delivery to our customers.

Weifang Jin Meng Dredger Company Factory and Workshop

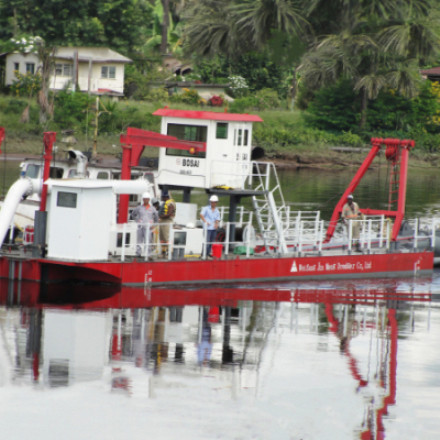

JMD350 Small Dredger In Guyana for River Dredging

JMD350 Small Dredger Installation and Training in Working Site

JMD350 Small Dredger Newly Made in Stock, Welcome Visit for More Details
