| Place of Origin: | China |
|---|---|
| Brand Name: | JIN MENG |
| Certification: | ISO9001 |
| Model Number: | JMD650 |
| Minimum Order Quantity: | 1set |
| Price: | $800000-$1400000 |
| Packaging Details: | Bulk |
| Delivery Time: | 120days |
| Payment Terms: | T/T |
| Supply Ability: | 10sets/year |
| Name: | Cutter Head River Suction Equipment | Type: | Cutter Suction Dredger |
|---|---|---|---|
| Dredging Capacity: | 1000 Cubic Meters Per Hour | Suction Pipe Diameter: | 700 Mm |
| Engine: | Cummins/BITSUBISHI | Condition: | Brand New |
| Cutter Head Diameter: | 2200 Mm | Shipping Terms: | FOB, CFR, CIF, DAF, CIP |
| Operating System: | Remote Control | Material: | Alloy Steel |
| Highlight: | 26inch River Dredging Equipment,1000M3/H 26 inch cutter suction dredger,Sand 26 inch cutter suction dredger |
||
| Attribute | Value |
|---|---|
| Name | Cutter head river suction equipment |
| Type | Cutter suction dredger |
| Dredging Capacity | 1000 cubic meters per hour |
| Suction Pipe Diameter | 700 mm |
| Engine | Cummins/BITSUBISHI |
| Condition | Brand new |
| Cutter Head Diameter | 2200 mm |
| Shipping Terms | FOB, CFR, CIF, DAF, CIP |
| Operating System | Remote Control |
| Material | Alloy steel |

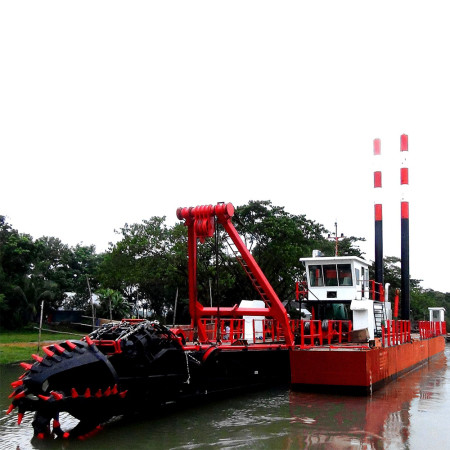

The 26-inch River Suction Equipment with Cutter Head is designed for efficient sand dredging operations with a capacity of 1000m³/h. Manufactured by Weifang Jin Meng Dredger Co., Ltd., this equipment combines robust construction with advanced technology for optimal performance in various dredging applications.
Weifang Jin Meng Dredger Co., Ltd. is a leading Chinese manufacturer specializing in cutter head river suction equipment. Located in Qingzhou, Shandong Province, the company maintains strategic partnerships with renowned dredger design institutes and operates multiple domestic and international offices to provide comprehensive after-sales support.
Our equipment has been successfully deployed across dozens of Chinese provinces and exported to numerous countries including India, Iran, Oman, UAE, Argentina, Colombia, Saudi Arabia, Bangladesh, Egypt, Nigeria, Mongolia, and Russia.
| Component | Specification |
|---|---|
| Dredging Pump | Dia. Discharge pipe: 650mm |
| Head | 65m |
| Max. Working capacity | 1100m³/h |
| Discharge distance | 4000m |
| Dredging depth | 18m |
| Diesel Engine | 1885KW Mitsubishi |
| Hydraulic Auxiliary engine | 522KW Cummins |
| Emergency Generator | 30KW WEICHAI |
| Total power | 2437KW |
| Oil Consumption | 365L/H |
| Hull Dimensions | 50m × 8.8m × 2.5m |
| Hydraulic System Components | VICKERS pumps (USA), SAI motors (Italy), REXROTH valves (Germany) |
| Operating system | SIEMENS PLC (Germany) |

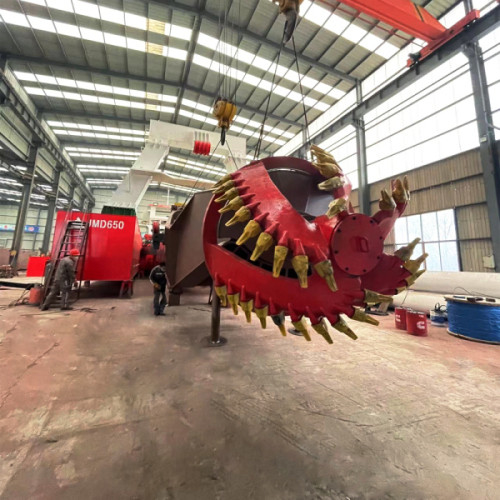

| Cutter Head | Φ2200mm crown-like, 400KW power |
For more information about our 26-inch Cutter Head River Suction Equipment or to discuss your specific dredging requirements, please contact our sales team.
