| Place of Origin: | China |
|---|---|
| Brand Name: | JIN MENG |
| Certification: | ISO9001 |
| Model Number: | JMD550D |
| Minimum Order Quantity: | 1set |
| Price: | $800000-$1300000 |
| Packaging Details: | Bulk |
| Delivery Time: | 120days |
| Payment Terms: | T/T |
| Supply Ability: | 10sets/year |
| Name: | Dredging Machine Cutter Suction River Dredger | Type: | Cutter Suction River Dredger |
|---|---|---|---|
| Discharge Distance: | 2000m | Suction Diameter: | 600mm |
| Spud Diameter: | 500mm | Warranty: | 1 Year |
| Color: | Customized | Control System: | Manual Or Remote Control |
| Material: | Marine Steel | Discharge Diameter: | 22 Inches |
| Highlight: | 25m river dredging equipment,25m cutter suction dredge,river cutter suction dredge |
||
| Attribute | Value |
|---|---|
| Name | Dredging machine cutter suction river dredger |
| Type | Cutter suction river dredger |
| Discharge Distance | 2000m |
| Suction Diameter | 600mm |
| Spud Diameter | 500mm |
| Warranty | 1 year |
| Color | Customized |
| Control System | Manual or remote control |
| Material | Marine steel |
| Discharge Diameter | 22 inches |

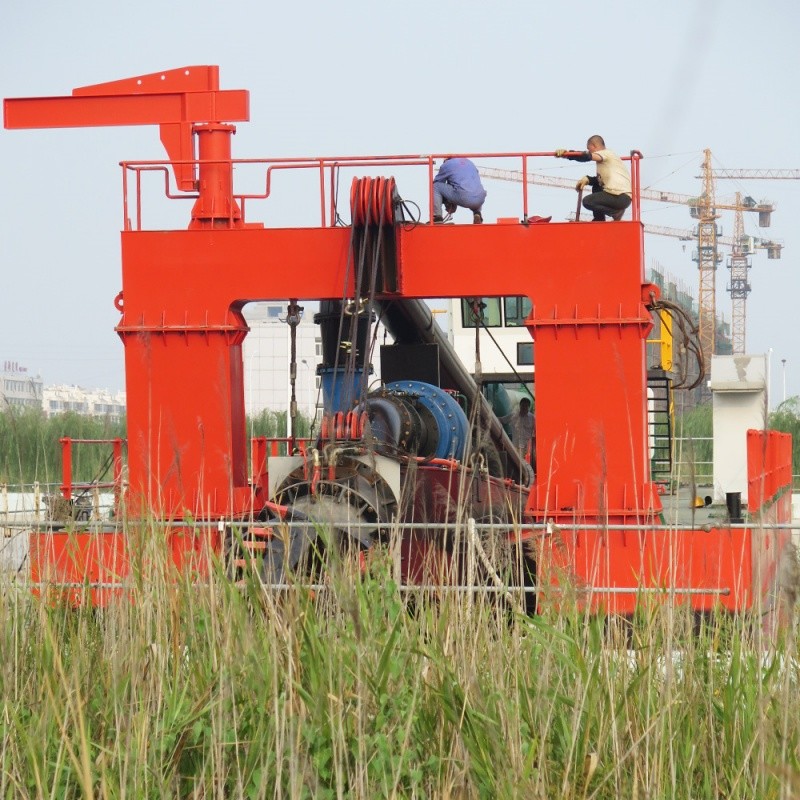

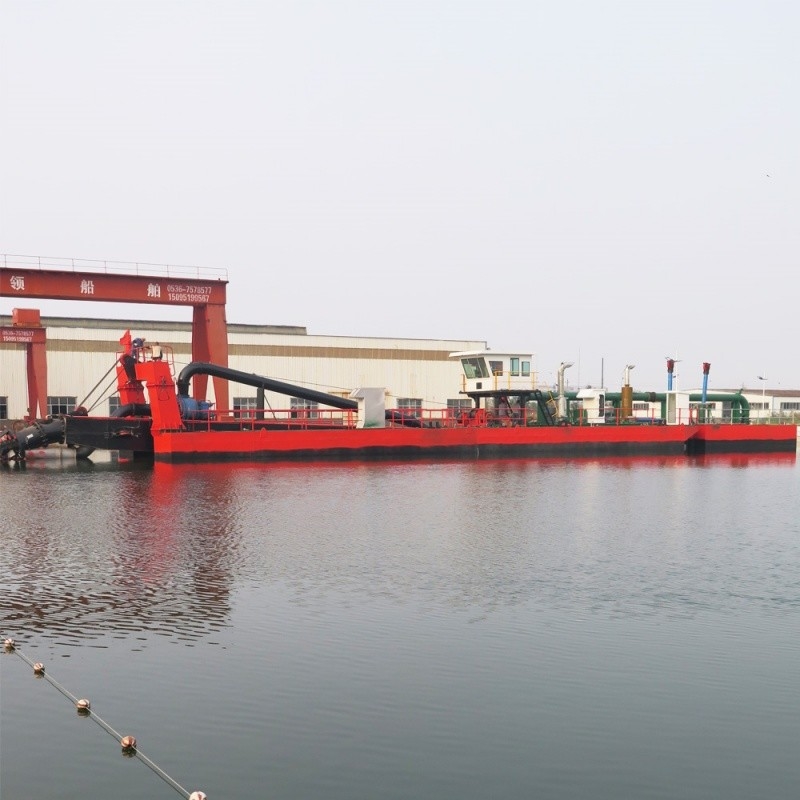

The Depth 25m River Dredging Equipment Suction Dredger with Submersible Pump is a high-performance solution for various dredging applications. Manufactured by Weifang Jin Meng Dredger Co., Ltd., this equipment is designed for efficiency and durability in challenging environments.
Weifang Jin Meng Dredger Co., Ltd., located in Qingzhou, Weifang City, specializes in the research, design, production, and sales of river dredging equipment. Our product range includes:
| Component | Specification |
|---|---|
| Dredging Pump | Discharge pipe diameter: 550mm |
| Head | 80m |
| Max. Working Capacity | 800m³/h |
| Discharge Distance | 3500m |
| Dredging Depth | 25m |
| Diesel Engine | 1306KW Cummins |
| Hydraulic Auxiliary Engine | 336KW Cummins |
| Submersible Pump Generator | 746KW Cummins |
| Emergency Generator | 30KW Cummins |
| Total Power | 2418KW |
| Oil Consumption | 360L/H |
| Hull Dimensions (L×W×D) | 56m × 8.5m × 2.5m |
This dredging equipment is suitable for various environments including seas, ports, lakes, and rivers. It can handle multiple soil types including hard sand, sludge, sea sand, river sand, clay, and mud.
For more information about our river dredging equipment or to request a quote, please contact our sales team.
