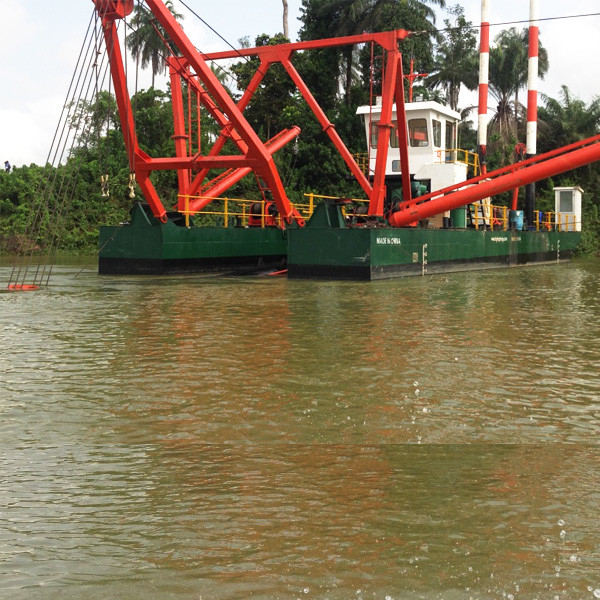

Middle Size River Sea Suction Cutter Head Dredger Equipment For Sand Dredging

Middle Size River Sea Suction Cutter Head Dredger Equipment for Sand Dredging

1.18inch River Sea Suction Cutter Head Dredger Equipment Company Introduction

Weifang Jin Meng factory cover an area of 40000 sqm, and has the working capacity for 8 sets river sea suction cutter head dredgers under production at same time.

The technology is from Holland IHC river sea suction cutter head dredger , Chief engineer Gan attended the cutter suction dredger technology research in 2000 which is organized by government.

Company has more than 20 years experience in river sea suction cutter head dredger production and sales, and river sea suction cutter head dredgers are sold to Africa, Middle East, Asia and South America and service for more than 20countries, Professional technology and reliable service, our company is in reward the approval and trust from customers.

River sea suction cutter head dredger is the main product in cutter suction type, and is popular recognized by customers for strong technical strength, high quality and easy maintenance.

2. 18inch River Sea Suction Cutter Head Dredger Equipment Description

Design__River sea suction cutter head dredger design meets the requirements and regulations of CCS, BV and ABS , which are belonging to IACS.

The technology refer to Holland IHC, and river sea suction cutter head dredger can be custom made according to customers' requirements.

Chief engineer Gan attended the “Local cutter dredger design study on IHC Beaver” in 2000.

Steel plate__ Raw material is marine use material which meets the requirements of CCS., and all plates are under sand blasting process.

Hydraulic system__Hydraulic oil pipes made by pipe bending machine to decrease the welding points so that can keep system stability. When the oil pipe finish, should be acid picking and  phosphating treatment to keep whole system clean and stability.

Dredging pump__flow passage components use High wear resistant alloy Cr27 to prolonged the pump service life, pump shaft seal use packing seal which is easy to maintain , and anti-friction bearings are from Japanese brand NSK.

3. Weifang Jin Meng River Sea Suction Cutter Head Dredger Equipment Technical Specifications

4. 18inch River Sea Suction Cutter Head Dredger Equipment Introduction

This river sea suction cutter head dredger is a type hydraulic controlled, assembling river sea suction cutter head dredger. It is used for river channel dredging,canal and water storage dredging. The dredging devices are driven by hydraulic, concentrate controlled. The river sea suction cutter head dredger main body is made up of three pontoons, which can be assembled when dredging. The operator cabin is dismountable,which can lower the height of the dredger when maneuvering and allow the river sea suction cutter head dredger to pass bridges. When the river sea suction cutter head dredger is transported long distance or passing not conjunctive water areas,the river sea suction cutter head dredger body can be dismounted and transported by trucks or trains. The river sea suction cutter head dredger can be fixed with anchor casting pole,trolley.The cutter driving device use lub oil and sealings.

18inch River Sea Suction Cutter Head Dredger Equipment factory and workshop

River Sea Suction Cutter Head Dredger Equipment road transportation by trucks

JMD450 18inch River Sea Suction Cutter Head Dredger Equipment working site

River Sea Suction Cutter Head Dredger Equipment Installation and Training

Please feel free to contact
