| Place of Origin: | China |
|---|---|
| Brand Name: | JIN MENG |
| Certification: | ISO9001 |
| Model Number: | JMD550D |
| Minimum Order Quantity: | 1set |
| Price: | $800000-$1300000 |
| Packaging Details: | Bulk |
| Delivery Time: | 120days |
| Payment Terms: | T/T |
| Supply Ability: | 10sets/year |

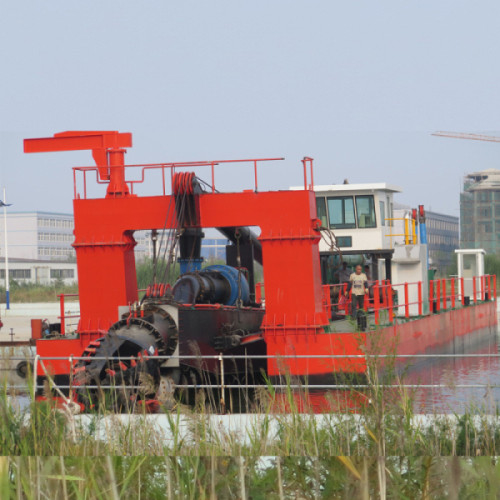

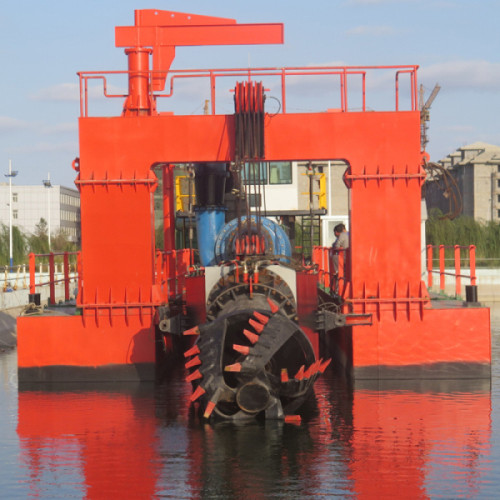

| Name: | Dredging Machine Cutter Suction River Dredger | Type: | Cutter Suction River Dredger |
|---|---|---|---|
| Discharge Distance: | 2000m | Suction Diameter: | 600mm |
| Anchor Winch Power: | 50kW | Spud Diameter: | 500mm |
| Dredging Depth: | 25m | Diesel Power: | Cummins |
| Cutter Power: | 200kW | Discharge Diameter: | 550mm |
| Highlight: | 25m dredging machine,25m river dredger,Submersible Pump river dredger machine |
||
| Attribute | Value |
|---|---|
| Name | Dredging machine cutter suction river dredger |
| Type | Cutter suction river dredger |
| Discharge Distance | 2000m |
| Suction Diameter | 600mm |
| Anchor Winch Power | 50kW |
| Spud Diameter | 500mm |
| Dredging Depth | 25m |
| Diesel Power | Cummins |
| Cutter Power | 200kW |
| Discharge Diameter | 550mm |
Weifang Jin Meng Dredger Co., Ltd., located in Qingzhou, Weifang City, specializes in the research, design, production, and sales of dredging equipment. Our product range includes:
Our dredgers are designed and constructed according to CCS standards, using CCSB steel plates and marine-grade anti-corrosion paint. Key components include:
| Component | Specification | Details |
|---|---|---|
| Dredging Pump | Discharge pipe diameter | 550mm |
| Head | 80m | |
| Max. working capacity | 800m³/h | |
| Power Systems | Diesel Engine | 1306KW Cummins |
| Hydraulic Auxiliary engine | 336KW Cummins | |
| Submersible pump generator | 746KW Cummins | |
| Dimensions | Hull (L×W×D) | 56m × 8.5m × 2.5m |
| Hydraulic System | Hydraulic pump | VICKERS America (Joint-venture) |
| Hydraulic Motor | Italy SAI technology (Joint-venture) | |
| Cutter Head | Type | Crown-like Φ1800mm |
| Power | 200KW |
We provide comprehensive support including:
